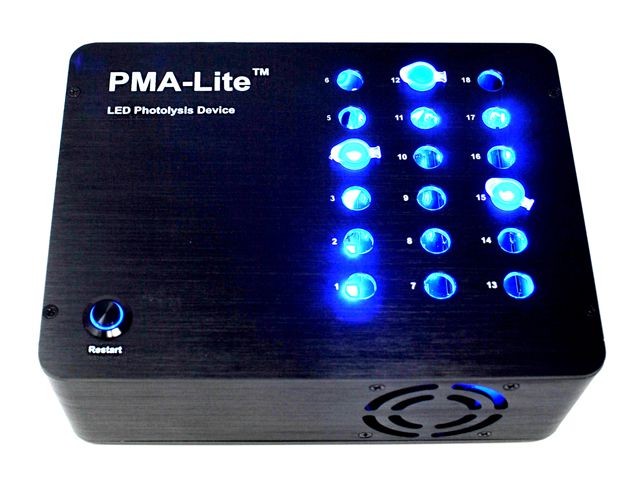

PMA-Lite LED 光解仪

PMA-Lite  LED 光解仪是一种轻质 LED辐照设备,设计用于在活性 PCR 应用中对PMAxx™ 或PMA 处理的样品进行佳光解。

在线咨询 价格咨询
13818683556
PMA-Lite LED 光解仪产品详情

PMA-Lite LED 光解仪 PMA-Lite LED Photolysis

PMA-Lite  LED 光解仪是一种轻质 LED辐照设备,设计用于在活性 PCR 应用中对PMAxx™ 或PMA 处理的样品进行佳光解。

PMA-Lite LED 光解仪

PMA-Lite  LED 光解仪特征

多可容纳 18 个样品瓶(1.5-2 mL 大小)

多个蓝色 LED 为样品瓶的侧面和底部提供均匀照明

内置风扇,保持温度≤37°C

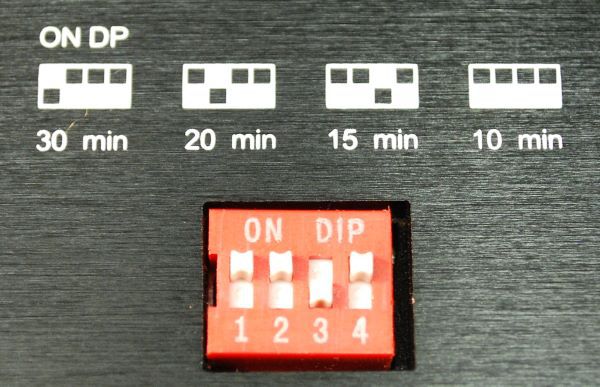

用于 10、15、20 或 30 分钟光解的计时器

包括通用插座适配器,适用于北美以外的客户

自购买之日起两年保修


规格

尺寸(宽 x 深 x 高):8.25 x 6.25 x 2.625 英寸(21 x 15.9 x 6.7 厘米)

重量:3 磅 10.7 盎司(1.66 千克)

频率范围:50~60 Hz

功率范围:100~240 VAC

内部 120/240 V 转换器

大功率: 60 W

LED输出波长:465-475 nm


活性聚合酶链反应

活性PCR是一种强大的技术,用于灵敏和快速地检测活微生物。与耗时的培养方法不同,qPCR 是一种快速灵敏的检测方法。然而,正常的qPCR不能区分活细胞和死细胞。使用 PMAxx™ 或 PMA 的 v-PCR,您可以获得 PCR 的速度、灵敏度和特异性,以及可量化的活力。由于无需培养,您甚至可以检测活菌但不可培养 (VBNC) 细菌。v-PCR 技术不仅可以应用于细菌,还可以应用于酵母、病毒、真核生物和古细菌等其他生物。


E90002 PMA-Lite LED Photolysis Device

美国Biotium Inc是荧光标记技术的染料厂家,其产品被科学家广泛用于生物化学,免疫学,细胞生物学和分子生物学,新药筛选等领域。该公司产品GelRed 和GelGreen核酸染料(EB和SYBR染料的替代者)已经在国内被广泛使用。EvaGreen PCR染料、CF系类和Mix-n-stain抗体标记染料、NucView Caspase 3/7 底物和PMA 活细胞检测试剂等一系列标志性的荧光染料,都是该公司的拳头产品。 作为Biotium Inc 在中国的合作伙伴,我们负责该公司产品的国内的市场销售与技术指导工作。

如何能够高效灵敏的检测死细菌中存在的活细菌数量在实际应用中至关重要,包括食品安全检查,饮用水质量控制和药物诊断等。而传统使用的细菌培养的检测方法,既费时又不够灵敏。

以PCR为基础的替代检测方法具有快速和高灵敏度特点。然而,基于 PCR的检测方法并不能有效的将活细胞和死细胞区分开来。近年来,Biotium公司研发的新型DNA修饰染料-叠氮碘化丙锭 (PMA™) 成功的克服了该难题。

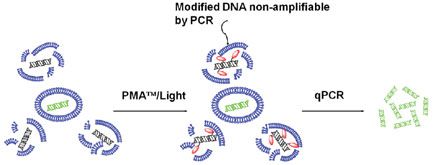

PMA™ 是一种与DNA具有高度亲和性的光反应染料。该染料可以嵌入在双链DNA中,当暴露在强烈的可见光下时可以与DNA形成共价连接,从而实现对DNA的化学修饰。而经修饰后的DNA将不能通过PCR进行扩增 (Figure 1)。 由于PMA™ 被设计为不能被细胞膜穿透性,因此当使用该染料处理同时包含死细菌和活性菌的样品时,只有细胞膜结构受到破坏的死细菌中的DNA能够被化学修饰。接下来可以进一步裂解活性菌并进行qPCR检测,从而实现对活性菌的选择性检测。同时,PMA™-PCR技术不仅能够应用于细菌检测,同样也可以用于其他微生物的检测(详见PMA™ 应用列表)。

  PMAxx™是一款Biotium公司研发的用于Viability PCR检测的DNA修饰染料,是PMA™的升级版。和PMA™ 染料一样,PMAxx™也是一款能够和dsDNA高度亲和的光反应染料。 在可见光下一经光解,PMAxx™能够与dsDNA共价结合,从而修饰DNA使其不能被PCR扩增。PMAxx™也被设计为不具备细胞膜穿透性,因此在检测包含死细菌和活性菌的细胞群体时,仅能够选择性地修饰死细胞中因细胞膜不完整而暴露的DNA,而拥有完整细胞膜的活细胞中DNA不能被修饰。PMAxx™染料的这个特性使其在通过qPCR选择性检测活性菌时非常有用。

 PMAxx™作为PMA™的替代升级产品,具有更高的灵敏性。尽管PMA能够通过qPCR有效的区分死细菌和活性菌,但并不能够*排除来自死细胞DNA的PCR产物,从而带来潜在的假阳性结果。作为Biotium公司的新型染料,PMAxx™能够更加高效的抑制死细胞中DNA的PCR扩增,从而更好的区分死细菌和活性菌。

PMA™ Enhancer能够有效地改善通过PMA™来区分革兰氏阴性菌中死细菌和活性菌。我们提供的PMA™ Enhancer为5倍浓缩液,可在使用PMA™之前添加到样品中。当对经过Enhancer预处理过的革兰氏阴性菌中的 进行PCR检测时,样品中死细胞的信号明显减弱,而活细胞的信号则没有变化。PMA™ Enhancer也可以与PMAxx™作为搭配使用。因此,同时使用PMA™ 和PMA™ Enhancer可以有效的对革兰氏阴性菌进行viability PCR检测。 PMA™ Enhancer作为一个独立的产品提供。另外,在PMA Bacterial Viability Kits(革兰氏阴性菌)中也包含该产品。

The PMA-Lite™ LED Photolysis Device is a light-weight LED light box designed for optimal photolysis of PMAxx™– or PMA-treated samples in viability PCR applications. Each purchase of PMA-Lite™ Photolysis Device includes a free trial size of PMAxx™.

Features

Holds up to 18 vials (1.5-2 mL size)

Multiple blue LEDs provide even illumination to the sides and bottoms of all vials

Internal fan to maintain temperature ≤37°C

Timer for 10, 15, 20 or 30 minutes of photolysis

Universal outlet adapter included for customers outside North America

Two-year warranty from date of purchase

Specifications

Dimensions (W x D x H): 8.25 x 6.25 x 2.625 in. (21 x 15.9 x 6.7 cm)

Weight: 3 lb. 10.7 oz. (1.66 kg)

Frequency Range: 50~60 Hz

Power Range: 100~240 VAC

Internal 120/240 V converter

Maximum Power: 60 W

LED Output Wavelength: 465-475 nm

Viability PCR

Viability PCR is a powerful technology for the sensitive and rapid detection of viable microorganisms. Unlike time-consuming culturing methods, qPCR is a fast and sensitive method of detection. However, normal qPCR does not distinguish between live and dead cells. With v-PCR using PMAxx™ or PMA, you get the speed, sensitivity and specificity of PCR, plus quantifiable viability. And because no culturing is required, you can even detect viable but not culturable (VBNC) bacteria. The v-PCR technology can be applied not only to bacteria but to other organisms like yeast, viruses, eukaryotes, and archaea.


Biotium offers the PMA-Lite™ LED Photolysis Device for light-induced cross-linking of PMAxx™ and PMA to dsDNA. The PMA-Lite™ is designed for samples in microcentrifuge tubes.

Commercial halogen lamps (>600 W) for home use have been employed for photoactivating PMA in some publications, though results may be less consistent due to variation in the set-up configurations. If you decide to use a halogen lamp, place the tubes on a block of ice on a rocking platform to ensure continuous mixing. We recommend freezing water in a clear tray to make the ice block, and placing a piece of aluminum foil under the tray to reflect light upward toward the bottom of the tubes. Set the lamp 20 cm above the samples, so that the light source is pointing downward onto the samples (up to 45° downward slant is OK). Expose samples to light for 5-15 min while rocking.


Each tube position on the PMA-Lite™ is illuminated by the three LED bulbs. We haven’t tested positional variability, but it is likely that the illumination varies slightly between positions and between devices. However, the illumination at each position is exceedingly bright, far in excess to what is required for photocrosslinking of the viability dyes EMA, PMA or PMAxx™ to nucleic acids, so any variability should not significantly affect the vPCR results.


The LEDs in PMA-Lite have brightness of 600-800 millicandela (mcd). There are three LEDs next to each tube (one bottom, two side) and the wavelength is 465-475 nm.
