ENF-260C手持式紫外线灯安全操作说明

ENF-260C/ENF-280C手持式紫外线灯安全操作说明

在使用Spectroline ENF-260C/FC、ENF-280C/FC系列便携式紫外线灯之前，请阅读操作说明。这种手持式紫外线灯会产生紫外线，对眼睛和/或皮肤有害。建议使用Spectroline紫外线吸收防护眼镜和面紫外线防护面罩。请参阅订购信息。佩戴Spectroline紫外线吸收防护眼镜和面紫外线防护面罩还可以改善荧光区域和背景之间的对比度，并消除“蓝雾”干扰。当皮肤暴露于短波或中波紫外线时，应使用防护服。

E系列手持式紫外线灯选型表：

上海峰志仪器有限公司现货供应美国spectro-UV公司生产的ENF-260C/FC、ENF-280C/FC手持式双波长紫外线灯，具体优惠价格请电话13818683556或微信沟通。

ENF-280C手提式双波长紫外线灯产品介绍请浏览：

ENF-280C手提式双波长紫外线灯

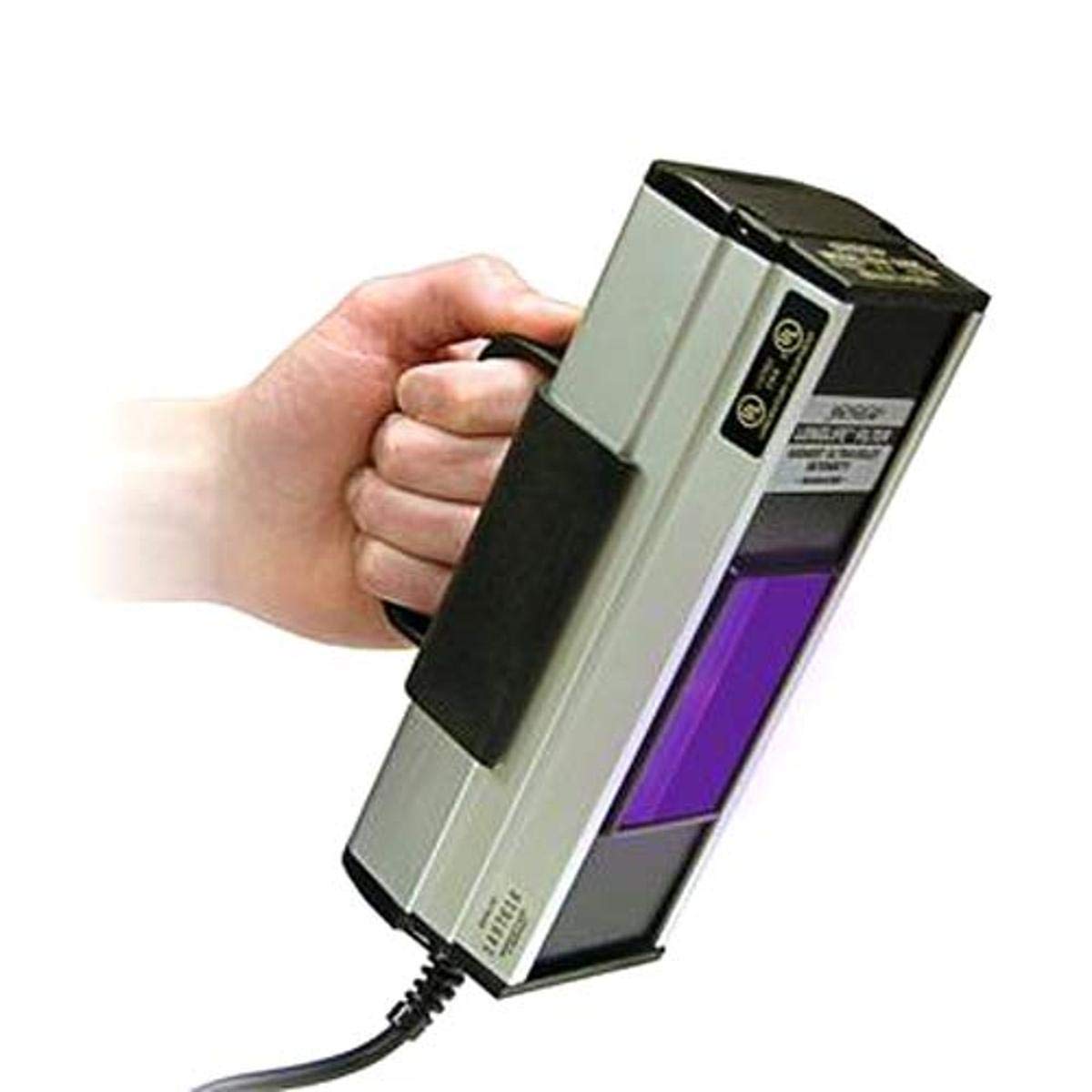

E/12-Series Portable UV Hand Lamps IMPORTANT SAFETY INSTRUCTIONS

Please read all operating instructions before using a Spectroline E/12-Series portable UV hand lamp.This lamp produces ultraviolet radiation that can be hazardous to the eyes and/or skin. Use of Spectroline UV-absorbing  protective eye and face wear is recommended. See ordering information. This eye and face wear also improves contrast  between the fluorescent area and the background and eliminates ‘‘blue haze’’ interference. Protective clothing should be used when skin is exposed to short or medium wave UV.

UNPACKING AND INSPECTION

1. Carefully unpack and inspect the lamp for possible damage in shipment. If any damage is noted, immediately notify the  carrier and supplier before attempting to use the lamp.

2. Save the shipping carton and packing materials for future storing and shipping of the lamp.

INTRODUCTION

Any one of the 30 Spectroline E/12-Series UV hand lamps can be powered in four different ways, depending on your choice of one or more optional accessories.

1. From a battery: Your lamp can operate from any 12V, 7 AHr, rechargeable battery. Order the BP-12A battery pack, which  includes a 12-volt, 7Ahr, rechargeable battery (9B65), the RB-12S battery charger and a nylon carrying case. The RB-12S  operates from a 120V/60Hz outlet. (Order the BP-12A/F battery pack with an RB-12S/F charger for 230V/50Hz.) The automatic charger (RB-12S) prevents accidental overcharge.

2. From a vehicle cigarette-lighter receptacle: Order the AL-12 adapter with a male cigarette lighter plug.

3. From a vehicle battery or 12-volt battery: Order the AA-12 adapter with two alligator clips.

4. From a 120-volt AC outlet: Order the AP-12/4 AC adapter (for 4- and 5-watt lamps) or the AP-12/6 AC adapter (for 6- and 8-watt lamps).

START-UP PROCEDURE

1. Connect the lamp to an appropriate battery or AC power source. When connecting the AL-12 adapter to a vehicle cigarette lighter receptacle, or the AA-12 adapter to a vehicle battery, make sure the engine of the vehicle is turned off.

2. Depress the large ON button for approximately five seconds and release it. The light may flicker initially but should stabilize after a few seconds.

3. Depress the small button to turn off the lamp.

USING CORD ACCESSORIES TO OPERATE THE UNIT

The lamp can be used with any of four optional cord accessories (described above).

1. BP-12A battery pack operation: Order the AL-12 adapter to connect the 12-volt rechargeable battery (9B65) to the lamp.

a. Insert the plug into the receptacle attached to the battery.

b. Insert the jack into the lamp housing. Refer to the operating instructions packed with the BP-12A for full information.

2. 12-volt battery operation: Order the AA-12 adapter to connect to a vehicle battery or any 12-volt battery that can supply at least 1.0 amp of continuous current.

2. IMPORTANT: With the engine turned off, connect the red clamp to the positive terminal and the black clamp to the negative terminal. Plug the cord’s jack into the lamp housing.

3. Vehicle cigarette-lighter operation: Order the AL-12 adapter. NOTE: The vehicle must be negative-ground. The engine must be turned off.

4. AC adapter operation: Use the cord with the AC adapter (AP-12/4 or AP-12/6) to power the lamp from a standard 120V/60Hz outlet. Connect the cord’s jack into the receptacle on the lamp housing and plug the AC adapter into an appropriate wall outlet.

OPERATOR SERVICING

Do not perform any servicing other than that contained in these instructions. Return the lamp to the factory for maintenance not covered in this section. WARNING: To avoid the risk of electrical shock, always disconnect the lamp from the battery or AC power source before cleaning or servicing.

FILTER REPLACEMENT

To replace the filter assembly in lamps equipped with filters:

1. Disconnect the lamp from its power source.

2. Lay the lamp housing on a flat, level surface.

3. Remove the two screws that hold the endcap opposite the power cord.

4. Slide the filter assembly off the lamp housing’s open end and set it aside.

5. Install the new filter assembly by reversing the above procedure.

TUBE REPLACEMENT

If the lamp fails to operate properly, the tube(s) may need to be changed.

1. Disconnect the lamp from its power source.

2. Lay the lamp housing on a flat, level surface.

3. If the lamp has a filter, remove the filter assembly by following the steps outlined in the FILTER REPLACEMENT section.

4. Grasp the tube by the metal bases at each end. Applying even pressure, gently rotate the tube one-quarter of a turn until it loosens.

5. Install the new tube and replace the filter assembly by reversing the above procedure. If the lamp still fails to work properly, make sure the two pins at each end of the tube are properly connected with the two copper contacts in each socket

MAINTENANCE OF THE UNIT

Do not allow liquids to leak into the electrical components. Immediately clean liquid spills from the housing with a damp, soft cloth and a mild detergent. Wipe dry. To clean the filter (if the lamp is equipped with one) or the reflector, use a soft cloth and a glass cleaner. Wipe dry. To clean the tube(s), remove them according to the instructions in the TUBE REPLACEMENT section. Clean the tube(s) with a soft cloth and mild detergent solution. Wipe dry.

WARRANTY

The warranty policy for the E/12-Series lamps is provided on the Certificate of Limited Warranty enclosed separately with each unit.

NOTE: For assistance of any kind, contact the Customer Service Department at Spectro-UV. Call toll-free 1-866-230-7305. Give full details of the difficulty and include the model and serial numbers of the unit and the date of purchase. If return of the unit or any components to the factory is deemed necessary, shipping instructions will be provided. If an

estimate of charges for nonwarranty work or other service work is required, a quote will be furnished upon evaluation of the unit. Out-of-warranty service work will not be performed without customer approval.

ORDERING INFORMATION

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Part No.

Battery Pack, Complete with 12V, 7 Ahr, Rechargeable Battery with

 Female Cigarette Lighter Receptacle, RB-12S Battery Charger,

Circuit-Protector 2A Fuse and Nylon Carrying Case. . . . . . . . . . . . . . . . . BP-12A

Battery Pack, Same as Above, but with RB-12S/F Charger. . . . . . . . . . . BP-12A/F

Adapter with 10-Foot AC Cord—for 4- and 5-Watt Lamps (120 Volt). . . . . . AP-12/4

Adapter with 10-Foot AC Cord—for 6- and 8-Watt Lamps (120 Volt) . . . . . AP-12/6

Battery Adapter with Alligator Clips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . AA-12

Battery Adapter with Male Cigarette Lighter Plug. . . . . . . . . . . . . . . . . . . . . . AL-12

Rechargeable Battery,12V, 7 AHr. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9B65

Battery Charger, Manual (120V/60Hz). . . . . . . . . . . . . . . . . . . . . . . . . . . . . RB-12S

Battery Charger, Manual (230V/50Hz). . . . . . . . . . . . . . . . . . . . . . . . . . . RB-12S/F

Lamp Carrying Handle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CH-180

Lamp Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SE-140

Spectacles, UV-Absorbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UVS-30

Goggles, UV-Absorbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UVG-50

Face Shield, UV-Absorbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . UVF-80

上海峰志仪器有限公司现货供应美国spectro-UV公司生产的ENF-260C/FC、ENF-280C/FC手持式双波长紫外线灯，具体优惠价格请电话13818683556或微信沟通。
