美国蒙那多激光转速表PLT200

美国蒙那多(美国monarch instrument)PLT200是掌上型、高精度的光电转速表。通过贴在被测物体上的反光条来测量物体转速。PLT200型转速表为镭射瞄准,远测量距离可达7.8m。另外,PLT200为接触非接触两用,即可通过反光条来非接触测量,也可通过接触轮接触测量线速度(如皮带)。PLT200带有输入和输出介面,可输出TTL信号。

在线咨询 价格咨询
13818683556
美国蒙那多激光转速表PLT200产品详情

美国蒙那多激光转速表PLT200

美国蒙那多(美国monarch instrument)monarch PLT200转速表是掌上型、高精度的激光转速表。通过贴在被测物体上的反光条来测量物体转速。PLT200型转速表为镭射瞄准,远测量距离可达7.8m。另外,PLT200为接触非接触两用,即可通过反光条来非接触测量,也可通过接触轮接触测量线速度(如皮带)。PLT200带有输入和输出介面,可输出TTL信号。

monarch PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* (8 meters) from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time while providing a non-slip rubber surface for single-hand operation.

美国蒙那多PLT200光电转速表

美国蒙那多激光转速表PLT200的性能:

  • 通过贴在被测物体上的反光条来测量物体转速。

  • PLT200型转速表为镭射瞄准,远测量距离可达7.8m。

  • PLT200为接触非接触两用,即可通过反光条来非接触测量,也可通过接触轮接触测量线速度(如皮带)。

  • PLT200带有输入和输出介面,可输出TTL信号。

美国蒙那多PLT200激光转速表

美国蒙那多激光转速表PLT200的技术参数:

型号PLT200
范围 非接触:5 -200,000RPM
接触:0.5 -20,000RPM(要配接触轮)
 10cm接触轮12英寸接触轮
线速度  Inch/min1.969-78,7406.000-144,000
厘米/分钟  cm/min5.000-200,00015.240-365,760
米 /分钟  Meter/min0.050-2,000.00.153-3,657.6
计数器1-200.000
精度非接触:0.01 %读数接触:±0.05 %读数
分辨率0.001转/分
尺寸176×61×41mm
重量210克
环境温度5-40℃
电源2节1.5V电池
测量距离0.05 - 7.8米
测量倾角±70°

Pocket Laser Tach 200(6125-010)包括:
PLT200转速表,12英寸的T-5反光贴纸,操作手册,产品注册卡和NIST校准证书

Pocket Laser Tach 200套装(6125-011)包括:
PLT200转速表,用于接触速度测量的远程接触组件(RCA)和5英尺的T-5反射带,操作手册,产品注册卡和NIST可追溯校准证书,标准手提箱

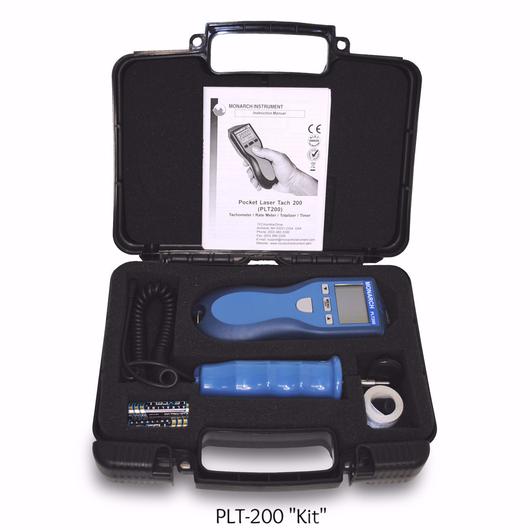

Pocket Laser Tach 200套装

上图:美国蒙那多PLT200光电转速表套装

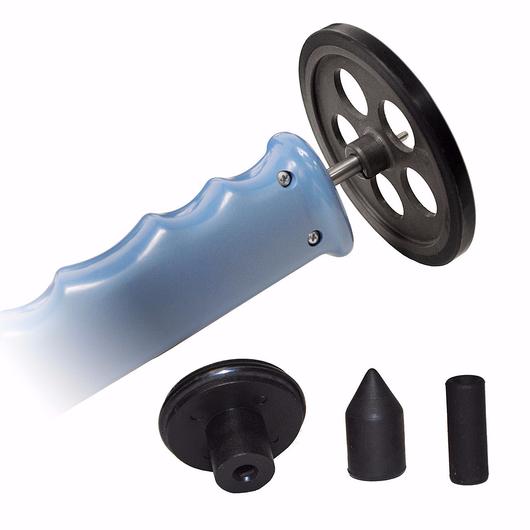

PLT200光电转速表的接触测量配件

上图:美国蒙那多PLT200光电转速表的接触测量配件

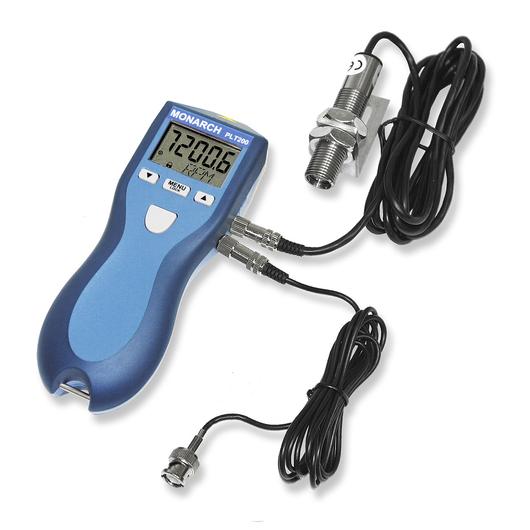

PLT200光电转速表的输入和输出功能

上图:美国蒙那多PLT200光电转速表的输入和输出功能

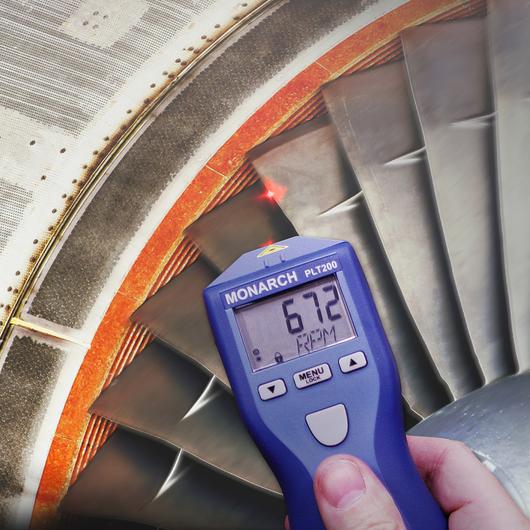

 美国蒙那多PLT200光电转速表的激光测量jpg

美国蒙那多PLT200光电转速表的激光测量

PLT200 portable optical tachometer Features


  • Operating Range up to 25 feet* (Class 2 visible laser)

  • Accepts Remote Contact Assembly (optional)

  • Accepts Remote Sensors (optional)

  • TTL Pulse Output (requires optional 6-foot BNC Cable)

  • Auto Ranging/Fixed Decimal (user selectable)

  • English and Metric Rates

  • Tripod Mounting Bushing

  • On-Target and Low Battery Indicators

  • Rugged Rubberized Housing

  • NIST Traceable Certificate of Calibration included

PLT200 portable optical tachometer Specifications

RATES:10cm Contact Wheel12-inch circumference Contact Wheel
Inch/min1.969 to 78,7406,000 to 144,000
Feet/min0.164 to 6,561.70.500 to 12,000
Yard/min0.055 to 2,187.20.167 to 4,000.0
cm/min5.000 to 200,00015.240 to 365,760
M/min0.050 to 2,000.00.153 to 3,657.6
