  • 美国蒙纳多PT99光电转速表

美国蒙纳多PT99光电转速表

美国蒙纳多Pocket Tach 99光电转速表是一款数字、电池供电的便携式非接触式光学转速计(红色 LED),它使用 LED 光源在距离反光带目标zui远 36 英寸处工作。符合人体工程学的设计允许同时安全、直接地观察旋转目标和显示器,同时为单手操作提供防滑橡胶表面。

在线咨询 价格咨询
13818683556
美国蒙纳多PT99光电转速表产品详情

美国蒙纳多(美国monarch instrument)Pocket Tach 99光电转速表是一款数字、电池供电的便携式非接触式光学转速计(红色 LED),它使用 LED 光源在距离反光带目标zui远 36 英寸处工作。符合人体工程学的设计允许同时安全、直接地观察旋转目标和显示器,同时为单手操作提供防滑橡胶表面。

Basic non-contact Optical Tachometer
 Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time while providing a non-slip rubber surface for single-hand operation. Pocket Tach Tach99 is the value leader of the world-class Pocket Tach Series from Monarch.

Pocket Tach 系列仪器都提供独特的人体工程学设计,让您可以同时安全地观察显示器和旋转目标。
 操作距离可达 36 英寸*
 LED光源
 易于使用的单手操作

 All Pocket Tach Series instruments provide a unique ergonomic design that allows you to safely observe both the display and the rotating target at the same time.
 Operating distance up to 36 inches*
 LED light source
 Easy-to-use single-handed operate

pt99手持式光电转速表技术参数:

型 号pt99plt200
范 围5-99,999rpm非接触:5-200,000rpm
 接触:0.5-20,000rpm(要配接触轮)
 10cm接触轮12英寸接触轮
线 速 度1.969-78,7406.000-144,000
cm/min5.000-200,00015.240-365,760
m/min0.050-2,000.00.153-3,657.6
计 数 器1-200.000
精 度±0.01%非接触:0.01%读数接触:±0.05%读数
分 辨 率0.001-1.0rpm0.001rpm
尺 寸176×61×41mm
重 量210g
环境温度5-40℃
电 源2节1.5v电池
测量距离5-100cm0.05-7.8m
测量倾角±30°±70°

 pocket tach 99 is a digital, battery-powered portable non-contact optical tachometer (red led), which operates up to 36 inches from a reflective tape target using an led light source. the ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time, while providing a no-slip rubber surface for single hand operation. pocket tach 99 in the value-leader of the world-class pocket tach series from monarch.

all pocket tach series instruments provide a unique ergonomic design which allows you to safely observe both the display and the rotating target at the same time.

display: 5 digits, 5 alpha-numeric lcd
 range: 5 to99,999 rpm
 accuracy: ±0.01% or ±1 digit
 resolution: autoranging: 0.001 to 1.0 rpm
 fixed: 1 digit rpm
 operating range: 2 inches to 36 inches, ±30°
 memory: maximum, minimum and last
 power: (2) "aa" 1.5 vdc batteries (20 hours)
 environmental: 5° to 40°c (40° to 105°f)
 80% rh up to 31°c (88°f)
 dimensions: 6.92 "h x 2.4"w x 1.6"d
 weight: 7 oz. (210 g)
 standards: iec1010-1

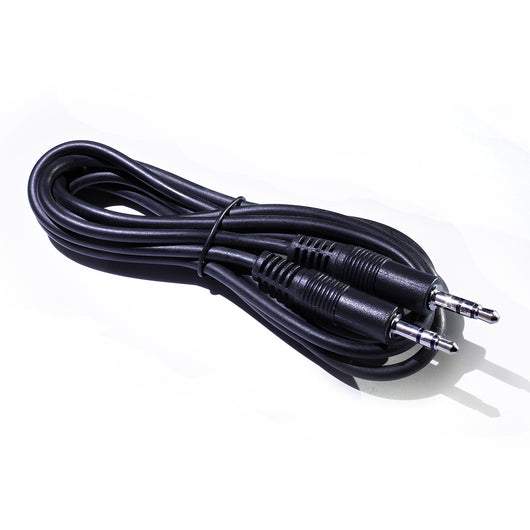

PT99转速表的输入/输出电缆 CA-4045-6

产品编号:6280-038

6 英尺 TTL 输入/输出电缆,1/8" 立体声插头到 1/8" 立体声插头。用于将一个闪光灯的输出连接到另一个闪光灯的输入。


美国蒙拿多频闪观测仪

 1. nova-strobe

bbl型 led光源 精度0.01fpm 30-500,000fpm
dbl型 led光源 精度0.01fpm 30-500,000fpm 外接转速
pbl型 led光源 精度0.01fpm 30-500,000fpm  转速 相位 延迟
 bax型 数字液晶显示, 电源驱动 30--10,000fpm
 bbx型 数字液晶显示, 电池驱动 30--10,000fpm
 dax型 数字液晶显示, 电源驱动 30--20,000fpm
dbx型 数字液晶显示, 电池驱动 30--20,000fpm

2. phaser-strobe pbx型 带时间及角度延迟 30--50,000fpm

3. palm strobe psx型 超小型 可拆卸充电电池 100-12,500fpm
 psx 备用电池包
 频闪仪备用灯管l-1903,l1904

美国蒙拿多数字式光电转速表

1.pocket-tach pt99型 非接触 精度0.01% 5--100,000rpm
 2. plt 200 激光型 非接触 精度0.01% 5-200,000rpm
 plt 200 kit 激光型 接/非两用 精度0.05% 0.5-20,000rpm
 32功能, 计数器, 定时器,线速度

3. act-1b (分体式) 精度0.005% 5-99,999rpm
 act-3x(分体式基本型)精度0.0015% 5-999,990rpm
 act-3x(分体式定制型)usb、5v模拟输出、报警、12v直流供电

4. ros光电传感器
 rols激光传感器
 irs红外传感器
 spsr自供电传感器
 sls激光传感器
 5. ge-200发动机转速表传感器

本产品的加工定制是否,品牌是蒙拿多,型号是PT99,类型是光电式转速计,测量精度是±0.01%,尺寸是176×61×41mm(mm),测量电压范围是口袋型转速表(V),测量电流范围是口袋型转速表(A),测量电阻范围是口袋型转速表(Ω),重量是0.21(kg)

美国Monarch Instrument公司:

自1977年以来,Monarch Instrument作为全球zui大的转速测量仪器和频闪检测设备供应商,不断致力于仪器创新。我们全面的精密产品线和校准服务使 Monarch 成为转速计、频闪仪、速度传感器、数据记录器和数据采集系统的专业选择。

Monarch 的多项专利技术、坚固且可靠。

illumiNova® 固定式频闪仪

Nova-Pro® 频闪仪/转速计

PLS 袖珍型 LED 频闪仪

Track-It™ 指示压力/温度记录仪

DataChart™ 6000 无纸记录仪

Monarch 的全方位服务销售队伍和全球分销网络随时准备提供可靠及时的技术服务。

Monarch Instrument致力于制造、销售和服务的创新和质量。

About Monarch Instrument

THE PROFESSIONAL’S CHOICE FOR ALMOST 45 YEARS!

Since 1977, Monarch Instrument continues to make strives in instrumentation innovation as the world’s largest supplier of rotational speed measuring instruments and stroboscopic inspection equipment. Our comprehensive lines of precision products and calibration services make Monarch the professional’s choice for tachometers, stroboscopes, speed sensors, data loggers, and data acquisition systems.

Monarch’s multi-patented technologies are precise, rugged and reliable.


illumiNova® Fixed Mount Stroboscopes

Nova-Pro® Stroboscope/Tachometer

PLS Pocket LED Stroboscope

Track-It™ Indicating Pressure/Temp Logger

DataChart™ 6000 Paperless Recorder

Monarch’s full-service sales force and worldwide distribution network stands ready offering unsurpassed customer service.

Monarch Instrument is committed to innovation and quality in manufacturing, sales, and service.
