美国磁通EV6000手持式 LED 黑光灯

作者:magnaflux 时间:2024-06-19 12:20:58浏览128 次

信息摘要:

美国磁通EV6000黑光灯是一款便携的、手持式黑光灯(紫外线灯),专为荧光渗透检测和荧光磁粉检测而设计。EV6000黑光灯采用高性能的LED灯珠和自主设计的透镜,使其光照分布均匀,近距离照射无耀斑无盲区,在长时间照射下透镜不发生雾化,确保高透光率,且照射范围更大。在距灯38厘米处光束截面直径可达23厘米,超出市场主流产品30%左右的照射范围,可大大加快大型工件的检测效率。

EV6000手持式 LED 黑光灯

美国磁通EV6000黑光灯是一款便携的、手持式黑光灯(紫外线灯),专为荧光渗透检测和荧光磁粉检测而设计。EV6000黑光灯采用高性能的LED灯珠和自主设计的透镜,使其光照分布均匀,近距离照射无耀斑无盲区,在长时间照射下透镜不发生雾化,确保高透光率,且照射范围更大。在距灯38厘米处光束截面直径可达23厘米,超出市场主流产品30%左右的照射范围,可大大加快大型工件的检测效率。

EV6000已经通过无损检测LED黑光灯标准,航空航天Prime及OEM光谱与光束强度分布认证。每一台设备发货时都附带符合或超过现有的荧光渗透和荧光磁粉探伤标准的制造商合格证。

美国磁通EV6000黑光灯产品优势

缩短检测时间

  • 以目前市场上辐照面广均匀的紫外光使检测时间缩短

  • 凭借高强度LED,即使在23厘米辐照面边缘的缺陷也可清晰显示

扩大检测范围

  • 几乎荧光渗透或磁粉检测都可使用

  • 可用放心来检测包括航空部件在内的多种部件

  • 符合包括ASTM E3022和RRES 90061在内的全部无损检测标准

优异的可靠性

  • 凭借可靠强化的结构,减少停工时间

  • 全密封的外壳可以在多环境下使用,无风扇冷却系统和防雾镜片使检测效果一贯的可靠

  • 专注于无损检测的设计和可靠的结构

舒适的工作环境

  • 比卤素灯轻30%,使操作者工作更舒适

  • EV6000的冷却系统使检测暗室温度适宜

LED技术提供更安全的工作环境

  • 冷光源LED技术使操作者不再有被烫伤的可能

  • 不再需要处理有害的汞蒸气, 更加安全

EV6000手持式 LED 黑光灯

EV6000 Hand-Held LED UV Lamp

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent non-destructive testing applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

The EV6000 features a uniform beam with no hot-spots and a 9 in / 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.

Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.

The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

EV6000 Hand-Held LED UV Lamp

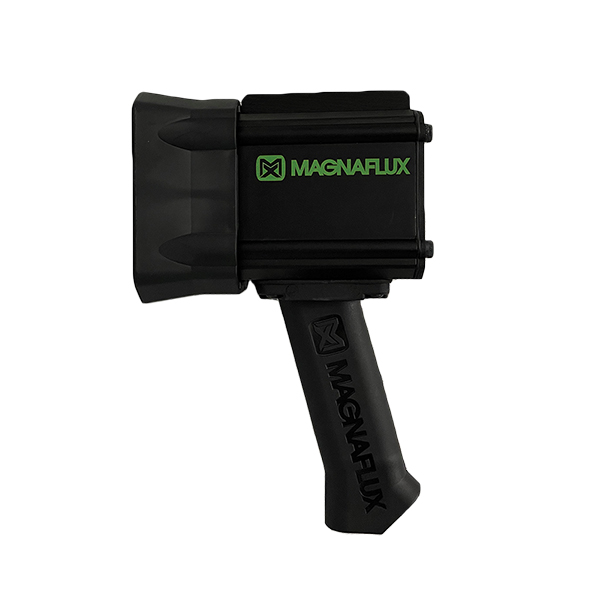

NOTE: Handheld UV lamps were temporarily manufactured with black handles from approximately July 2022 to mid-June 2023.

Benefits

Minimizes time to inspect parts

  • Speeds up inspection time with one of the widest, most even beams on the market

  • Indications are clearly visible even at the edge of the 9 inch / 23 cm beam, thanks to the high intensity LEDs

Maximize range of inspections

  • Use for virtually any fluorescent penetrant or mag particle inspection

  • Inspect a wide range of components, including aerospace parts, without worry

  • Full NDT specification compliance, including ASTM E3022 and RRES 90061

Increases real-world reliability

  • Reduces on-the-job downtime with dependable, reinforced construction

  • Fully sealed IP65 rated housing will stand up to the elements, along with a fan-less cooling system and non-clouding lens for reliable, consistent inspections

Features

  • 5,000 μW/cm2 maximum irradiance at 15 in / 38 cm

  • 9 in / 23 cm wide, uniform circular beam

  • Light weight at only 2 lb / 0.9 kg

  • No hot-spots in the beam profile

  • IP65 rated, rugged, durable design

  • No internal fan

  • Low energy consumption

  • Aerospace prime and OEM certified

  • Improved operator and environmental safety

  • Certified to ASTM / RRES / NADCAP


ev6000_flyer-english.pdf
