UVP compact and handhold uv lamp UVL-56 6w 365nm
Description
Essential multipurpose UV lamps for laboratory use
Choice of 6w handheld or 4w compact UV lamps.

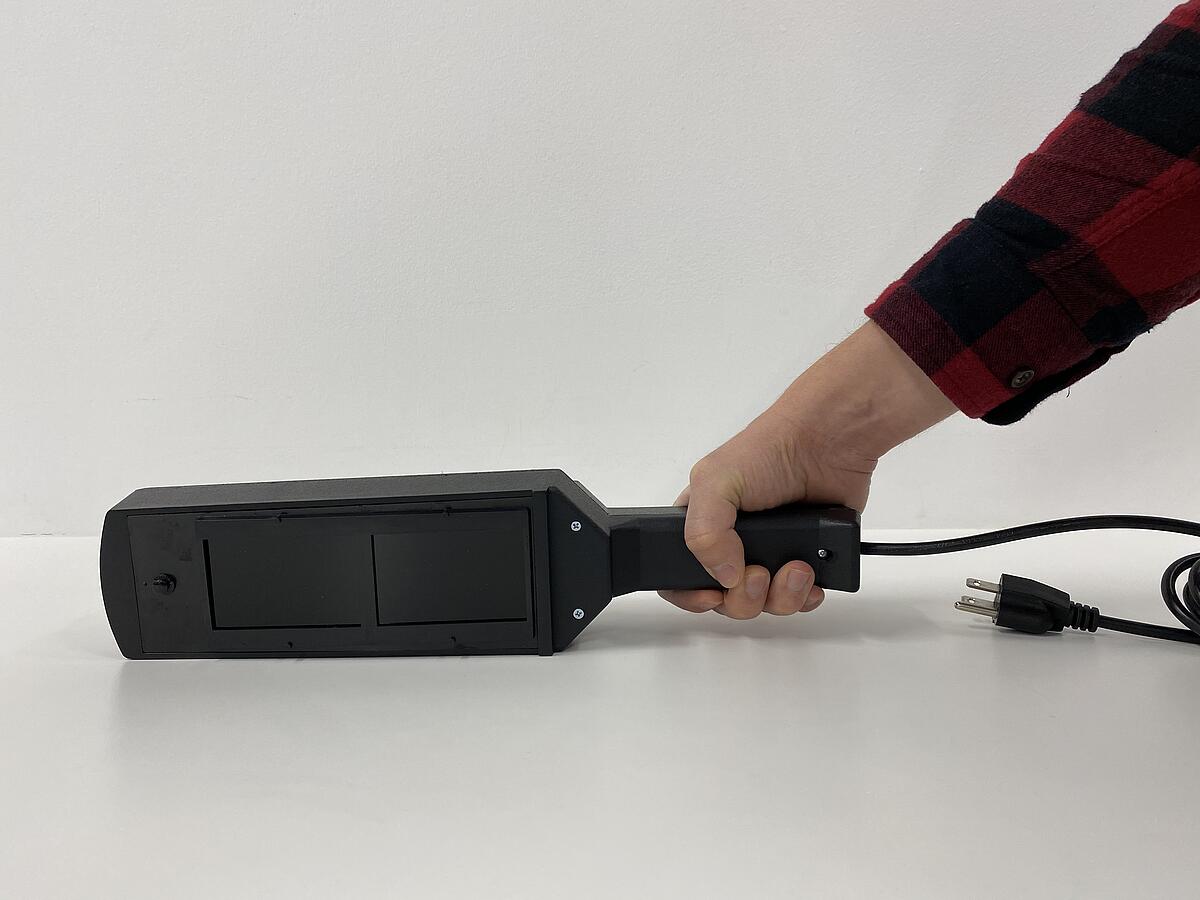

Handheld UV Lamps
Uniquely designed with an ergonomic handle
Lightweight 6w lamp for easy handling
Durable plastic housing
Models available with shortwave, longwave UV or a combination shortwave/longwave version
Combination shortwave/longwave version comes with a snap-on wavelength selector for switching between wavelengths L x W x H: 14.9 × 3.2 × 2.5 in. (378 × 81 × 64mm)
Compact Lamps
Lightweight 4w lamps fit comfortably in the hand
Available models include 254nm shortwave, 365nm longwave or a combination shortwave/longwave version
Shortwave/longwave version comes with a snap-on wavelength selector for switching between wavelengths L x W x D: 7.8 × 2.8 × 2.1 in. (198 × 71 × 53mm)
Bacterial identification, specimen staining, titration processes, thin layer chromatography, sterilization and visualization of DNA and RNA, and fluorescence of other materials
† Relative intensity at 3 in. (7.6cm).
Order Info
Replacement tubes available for all models.
Certifications
ETL/ETLc or CE certified
Technical Data
Specifications
Housing:Plastic
UV:Select from models with 254 nm, 302 nm, 365 nm UV or combination 254/365 nm
Watts:Six
Lamp Dimensions: 14.9L x 3.2W x 2.5H in. (378 x 81 x 64 mm)
Lamp Stand Dimensions: 10.74H x 13L x 3W in. (273 x 330 x 76 mm)
Order Information
| Part Numbers | |||||
|---|---|---|---|---|---|
| 115 V | 230 V | Model | Description 6 Watt Lamps | Filter | |
| 95-0004-09 | 95-0004-10 | UVG-54 | Handheld UV Lamp, 254 nm | 98-0004-03 | |
| 95-0005-05 | 95-0005-06 | UVGL-55 | Handheld UV Lamp, 254/365 nm | 98-0005-03 | |
| 95-0007-05 | 95-0007-06 | UVGL-58 | Handheld UV Lamp, 254/365 nm | 98-0004-03 | |
| 95-0006-02 | 95-0006-03 | UVL-56 | Handheld UV Lamp, 365 nm | 98-0006-03 | |
| 95-0104-01 | 95-0104-02 | UVM-57 | Handheld UV Lamp, 302 nm | 98-0004-03 | |
| Replacement Parts / Accessories | |||||
| 98-0016-03 | J-129 | Lamp Stand | |||
| 34-0013-01 | Replacement Tube | 6 Watt, 254 nm | |||
| 34-0015-01 | Replacement Tube | 6 Watt, 254/365 nm (split tube) | |||
| 34-0034-01 | Replacement Tube | 6 Watt, 365 nm | |||
| 34-0044-01 | Replacement Tube | 6 Watt, 302 nm | |||
Use these lamps with the J-129 Lamp Stand for hands free operation
Use these lamps the C-10 Cabinet for fluorescing and viewing materials in a darkened environment
UV blocking eyewear
