  • 美国UVP公司LMS-20紫外透射台
  • 美国UVP公司LMS-20紫外透射台
  • 美国UVP公司LMS-20紫外透射台

美国UVP公司LMS-20紫外透射台

美国UVP公司analytikjena LMS-20三波段紫外透射台95-0417-02,LMS-20三波段紫外透照台,短波254nm/中波302nm/长波365nm,透照面积为20x20cm。中国地区220V电压订货号为:95-0417-02

在线咨询 价格咨询
13818683556
美国UVP公司LMS-20紫外透射台产品详情

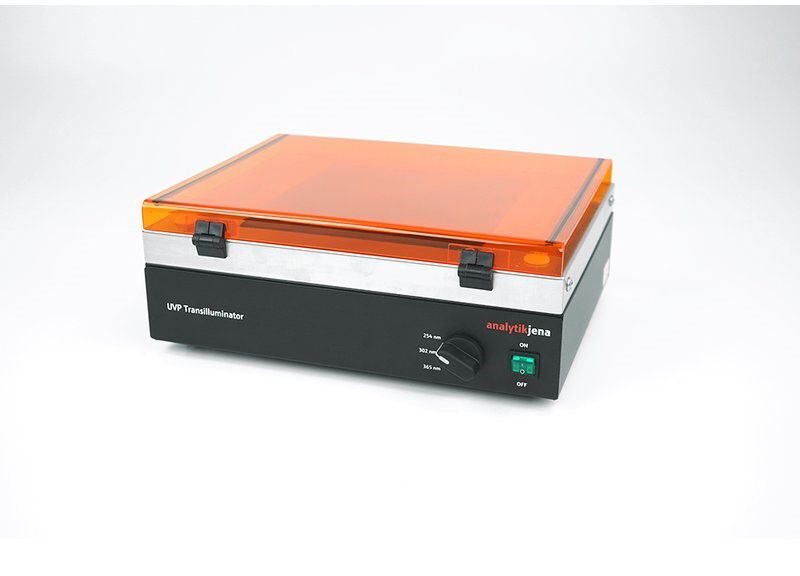

美国UVP公司analytikjena LMS-20三波段紫外透射台95-0417-02

美国UVP公司analytikjena LMS-20三波段紫外透射台95-0417-02,LMS-20三波段紫外透照台,短波254nm/中波302nm/长波365nm,透照面积为20x20cm。中国地区220V电压订货号为:95-0417-02

美国UVP LM-20 2波段紫外透射仪内置了302nm/365纳米,透照面积为20厘米x 20厘米,订货号为95-0449-02

analytik-jena-uvp-lms-20-visi-blue-transilluminator-8w-254-302-365nm-95-0417-02 (1).jpg

LMS-20三波段紫外透射台主要特点

   增强的紫外线输出和强度
   不亮闪烁
   较宽的强度范围与变量选择(指定机型)
   灯快速启动
   通用电源
   降低耗电量
   灯管寿命长
   重量轻
   改进的凝胶可视化和凝胶文件
   analytik-jena-uvp-lms-20-visi-blue-transilluminator-8w-254-302-365nm-95-0417-02_7.jpg

   透照特性
   3UV透照台提供254nm、302nm和365nm的两种紫外波长
   轻松查看365nm的长波紫外光凝胶,以避免长时间损坏样品。研究人员可以使用中波302nm增加荧光。短波254nm的来照射样品。
   紧凑型透照台,重量轻
   8瓦的型号提供了一个低成本的高性能紫外透射仪
   Benchtop系列透照台合理的结构设计与优质的紫外灯管,保证了紫外透射台光照亮度均匀。
   单波长紫外透射台标配有302nmUV灯管,另有多种波长可选,以配合不同染料如常用的EB, SYBR-Green,SYBR-Orange等染色的凝胶观察。
   双波长的紫外透射台可满足实验的不同需要,302nm适合DNA/RNA样品的观察和分析,365nm适合制备观察以及切割条带,减少对DNA的破坏.双波长的紫外透射台可满足实验的不同需要。
   独特的紫外防护板设计,既不影响切胶操作,又大程度防止了紫外线对人体的伤害。
   警告:透射仪具有强大的紫外线辐射,会对眼睛和皮肤造成严重损害,注意保护措施。操作之前请阅读透照紫外线警告信息

产品规格
强度:部分型号提供单强度其他型号包括可变强度。
可变强度设置 - 高/中/低:设置允许对凝胶进行日常拍摄的荧光紫外光激发。中档非常适合观看快速单波段切除。低档设置允许定位和准备凝胶,切除多频段和对焦摄影。
紫外光源:参考部件号选项卡
功率:8瓦
外形尺寸
3UV型号:279x356x137mm

高度包括紫外线阻隔板(型号)
 analytik-jena-uvp-lms-20-visi-blue-transilluminator-8w-254-302-365nm-95-0417-02_3.jpg

型号

Part Numbers

230VModelIntensity StyleWavelengthWattFilter Size
95-0180-02M-10*Single302nm6 watt10x10cm
95-0455-02M-15Single302nm8 watt15x15cm
95-0447-02M-20Single302nm8 watt20x20cm
95-0457-02 (230V)M-26Single302nm8 watt21x26cm
95-0456-02M-15VVariable302nm8 watt15x15cm
95-0452-02M-20VVariable302nm8 watt20x20cm
95-0458-02M-26VVariable302nm8 watt21x26cm
95-0413-02M-26XVVariable3028 watt25x26cm
95-0449-02LM-20Single302/365nm8 watt20x20cm
95-0459-02LM-26Single302/365nm8 watt21x26cm
95-0417-02LMS-20Single254/302/365nm8 watt20x20cm
95-0414-02LMS-26Single254/302/365nm8 watt21x26cm

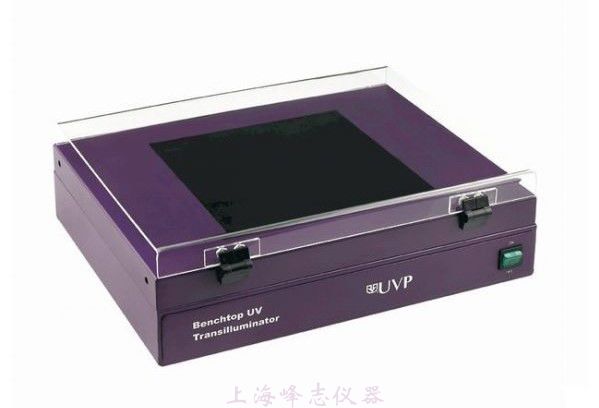

   Benchtop UV Transilluminators
   UVP offers a wide range of filter sizes and single or multiple UV wavelength transilluminators in a compact, benchtop size. UVP's patented 3UV? Benchtop Transilluminator (main picture) provides the selection of longwave, midrange and shortwave in one compact unit.

   Applications
   Gel Electrophoresis
   DNA Fluorescence
   Protein Fluorescence

   Main Features
   Increased ultraviolet output and intensity
   No light flicker
   Wider intensity range with variable selection (select models)
   Fast lamp start up
   Universal power supply
   Reduced electrical consumption
   Longer tube life
   Lighter weight
   Improved gel visualization and gel documentation

   Transilluminator Features:
   UVP's patented 3UV Benchtop Transilluminator provides the selection of 365nm, 302nm and 254nm in one compact unit
   2UV models offer 302nm and 365nm UV in one model
   Easily view gels under 365nm longwave UV for extended periods of time avoiding photonicking damage. Researchers can use the 302nm midrange to increase the fluorescence for photodocumentation. Shortwave 254nm UV is used to irradiate samples
   All Benchtop Transilluminator models are compact, lightweight units
   These 8-watt models provide a low cost alternative to the High Performance UV Transilluminators
   A variety of filter area work surface sizes are available
   Hinged, clear UV blocking cover, included with each transilluminator, is adjustable for access to the filter surface
   WARNING: Transilluminators are powerful sources of ultraviolet radiation which can cause serious damage to unprotected eyes and skin. Read the ultraviolet Caution Information before operating any transilluminators.

   Specifications
   Intensity:  Select models offer single intensity other models include variable intensity. Refer to the part numbers tab for information.

   Variable intensity settings - High/Medium/Low:   High setting allows for UV excitation of fluorophores on gels for routine photography. Medium is excellent for viewing and quick single-band excision. Low setting allows for positioning and preparation of gels, excising multiple bands, and focusing for photography.
   UV Source:   Refer to the Part Numbers tab for specific wavelengths for each model
   Watts:  8 or 6 - Refer to the Part Numbers tab for watts

   Dimensions
   3UV Models:  11D x 14W x 5.4H in. (279 x 356 x 137mm)

   2UV Models:  11D x 14W x 4.8H in. (279 x 356 x 122mm)

   Single UV/Variable Intensity Models (Except M-10):   11D x 14W x 4.8H in. (279 x 356 x 122mm)

   M-10:  7.25D x 10.25W x 4.5H in. (184 x 260 x 114mm)

   Height includes UV blocking cover (all models)

   Note about UV: UVP refers to its midrange UV products as 302nm. Other manufacturers may say 300nm, 310nm or 312nm. The spectral output of these units is the same as UVP's 302nm. Please call UVP's technical services for further information or link here to Midrange Application Bulletin.

   Options
   Gel Tools
   Converter Plates
   UV Blocking Eyewear

   Ordering Information
   *Standard ballast, not electronic ballast. 115V unit.
