美国蒙那多bbx手握式频闪仪

美国蒙那多bbx手握式频闪仪采用内部电池供电,一次充电可连续使用60分钟。如果您不需要内置电池频闪仪,可选择型号bax,与bbx手握式频闪仪其它功能外观参数完全一致,bax手握式频闪仪采用电源供电,价格比bbx频闪仪更优惠。





在线咨询 价格咨询
13818683556
美国蒙那多bbx手握式频闪仪产品详情

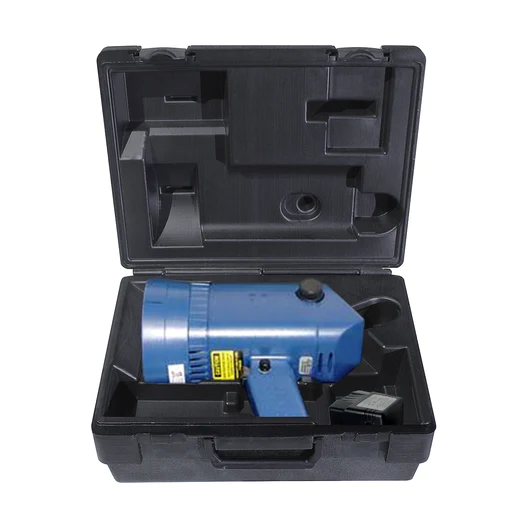

美国蒙那多BBX手握式频闪仪

美国蒙那多(美国monarch instrument)原装bbx手握式频闪仪,便携式设计,30-10000FPM的测量量程,数字液晶显示,直接使用电池驱动,因此不受使用环境限制,可方便的携带到生产现场进行检测,如机械制造、印刷、轻工、纺织、电力、医药、食品加工等行业。


手握式频闪仪:蒙那多原装进口,美国生产,进口品质。在国内转速和频闪仪测量方面具有非常高的使用率,上海峰志仪器有限公司为美国梦那多产品原装代理,美国蒙那多原装bbx手握式频闪仪现货销售,我们是梦那多华东代理,专业频闪仪经销。同时还销售有梦那多各型号频闪仪灯泡、电池等配件,欢迎来电咨询。

BBX手握式频闪仪采用内部电池供电,一次充电可连续使用60分钟。如果您不需要内置电池频闪仪,可选择型号bax,与bbx手握式频闪仪其它功能外观参数完全一致,bax手握式频闪仪采用电源供电,价格比bbx频闪仪更优惠。

美国蒙那多原装bbx手握式频闪仪技术参数

型号 :Nova-Strobe bbx
测量范围 :30-10000FPM
精度 :±1FPM
分辨率 :1FPM
灯管寿命 :5千万次
闪能 :140mJoule
平均功率 :8 W
连续工作时间 :6000FPM用60分钟
电源 :充电电池
重量 :1.2kg
尺寸 :229×93×92mm 反光面直径:122mm
手柄长度:108mm


美国蒙拿多dbx/dax便携式频闪仪的更换灯管:

Monarch L-1903 Replacement Lamp

美国蒙拿多BBX便携式频闪仪的更换灯管

美国蒙拿多dbx/dax便携式频闪仪的可更换充电电池组:

美国蒙拿多BBX便携式频闪仪的可更换充电电池组

美国蒙那多bbx手握式频闪仪的英文介绍:

Nova-Strobe bbx Battery-Powered Stroboscope

Nova-Strobe bbx Battery-Powered Stroboscope,Monarch's most basic battery-powered xenon stroboscope... still a workhorse!

 The bbx is simple to operate, just point and shoot. Lightweight and bright with flash rates to 10,000 Flashes Per Minute (FPM) these strobes are comfortable to hold and will operate continuously with no danger of overheating.

The bbx Battery-Powered Stroboscope weighs only 1.9 lbs. (0.86 kg) and will run continuously for 2 hours on a single charge. A slow charger is included; the recharge time is 4 hours.

To see the latest in portable stroboscope technology, take a look at the Nova-Pro 100!

FEATURES

Powerful light output (20% brighter than competitive models)

Lightweight for easy handling

Electronic Switching provides continuous cool operation

Tripod mounting bushing in the handle

Battery-powered

Cost-effective



SPECIFICATIONS*

Range Flashes/Minute30-10,000 FPM/RPM
DisplayLCD with 6 numeric 0.506 in. [12.85 mm] high digits and 5 alphanumeric 0.282 in. [7.17 mm] high digits
Accuracy/Resolution±1 LSD/1 FPM
Light OutputAverage Power: 15.5 Watts typical > 4000 FPM Instantaneous (per flash): 230 mJoule typical to 4000 FPM
Knob AdjustmentDigital rotary switch with 36 detents per revolution; velocity-sensitive
MemoryLast setting before power down is remembered and restored on next power
Flash Tube & Life (typical)High-power xenon - 100 million flashes typical
Operating Temperature32-104 °F [0-40 °C]
         May be operated for short time periods, slightly beyond the stated temperature range.
Input PowerAC powered: 115 V ac or 230 V ac, 35 VA (as ordered)
Operating Time (charged batteries)2 hours typical @ 1800 FPM
Dimensions (LxWxH)Body: 9 in. x 3.66 in. x 3.56 in.
         [229 mm x 93 mm x 90 mm];
         Reflector Housing: 4.8 in. [122 mm] diameter;
         Handle: 4.25 in. [108 mm] long
PowerInternal NiMH rechargeable batteries
Weight1.9 lbs. (0.86 kg)



美国蒙那多bbx手握式频闪仪生产厂家的批发价格请咨询:13818683556(可直接添加微信咨询)
