cl-1000紫外交联仪说明书

作者：上海峰志时间：2022-10-23 16:41:26浏览881 次

信息摘要：

UVP CL-1000 Crosslinkers offer researchers an instrument to quickly, safely and efficiently expose samples to a controlled amount of ultraviolet radiation. CL-1000 series features a lay-down type drawer while the CX-2000 has a pull out drawer. Exposure of samples to UV provides for the following:

美国UVP cl-1000紫外交联仪说明书下载地址在本文底部

CL-1000紫外交联仪通常有2种辐照方式，一种按照能量辐照，一种是按照时间辐照，下面就分两步给大家介绍如何操作CL-1000紫外交联仪

A:用户设置UV能量辐照：

有时，你可能有必要按照能量值设置辐照。这很容易实现，如下所示：

按下触觉触摸板上的“ENERGY”，然后通过按下触摸板上数字来设置能量暴露要求。能量曝光设置现在应该以闪烁模式显示在LED上。

记住：显示的能量暴露设置必须乘以100。如果设置正确，请按触摸板上的回车键。按下触摸板上的START。稍稍延迟给UV管通电后，LED将开始倒计时。曝光周期结束时，该装置将自动停止，并发出五次蜂鸣音。曝光现在完成。

B、用户设置紫外辐照时间

设置自己的紫外辐照时间可以通过以下方式实现：

按触觉触摸板上的“time”，然后按数字设置您的要求。您的时间曝光设置将以闪烁模式显示在LED上。请记住，您的时间曝光设置是以分钟和十分之一分钟为单位设置的。如果您的设置正确，请按触觉触摸板上的ENTER键。

按下START（开始）。

稍微延迟一段时间后，UV灯管通电，LED将开始倒计时。曝光周期结束时，该装置将自动停止，并发出五次蜂鸣声。曝光现在完成。

如果需要美国UVP cl-1000紫外交联仪中文说明书，请添加网页底部微信索取。

上海峰志仪器有限公司现货供应美国UVP CL-3000、美国spectroline XL-1500、美国路阳UCL-3200\3500紫外交联仪，提供紫外交联仪维修和配件服务。详细信息请微信扫描网页底部二维码咨询。

INTRODUCTION

UVP Crosslinkers offer researchers an instrument to quickly, safely and efficiently expose samples to a controlled amount of ultraviolet radiation. CL-1000 series features a lay-down type drawer while the CX-2000 has a pull out drawer. Exposure of samples to UV provides for the following:

• Crosslinking of DNA or RNA to nitrocellulose, nylon or reinforced nitrocellulose.

• PCR sample contamination control.

• Photoniking of DNA

• Testing RecA function

• Rapid site mapping

• UV sterilization and sanitization

• UV curing

The Crosslinkers are designed to measure and control the ultraviolet (UV) radiation within the exposure chamber. A unique UV sensor continually measures the UV energy and automatically adjusts to variations in UV intensity that occurs as the UV tubes age. This same UV sensor feedback measurement system allows you to set UV sample exposure, which automatically deactivates the UV sources when the set UV energy dose has been achieved.

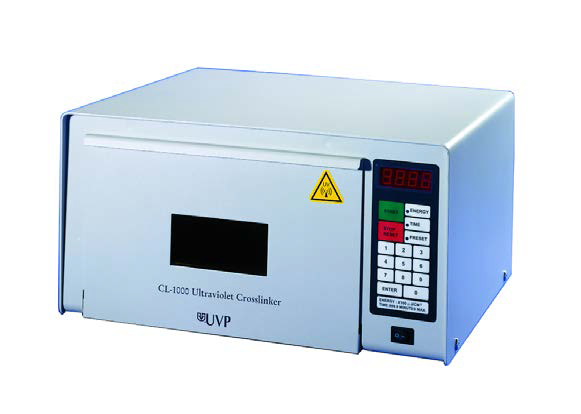

cl-1000紫外交联仪

IMPORTANT SAFETY INFORMATION

Ultraviolet Crosslinkers are a powerful source of ultraviolet radiation. Even though they are not easily accessible, do not attempt to disengage or override the internal safety interlocks. Exposure to the UV radiation may result. If the UV sources remain on when the door is open, the unit is malfunctioning and use should be discontinued until the unit is serviced. Do not expose unprotected eyes or skin to UV radiation. Always disconnect the UV Crosslinker from its electrical supply before servicing.

DESCRIPTION AND SPECIFICATIONS

The dimensions for:

CL-1000 Series UV Crosslinkers:

External: 8.75"H x 13.75"D x 15.75"W (22.2 x 34.9 x 40.0cm)

Interior chamber dimensions: 5"H x 12"D x 10"W (12.7 x 30.5 x 25.4cm)

Weight: 15.5 lbs. (7.5 kg)

Tubes: 5 x 8 watt UV dual bipin discharge type

CL-1000 Model: 254nm UV

CL-1000L Model: 365nm UV

CL-1000M Model: 302nm UV

CX-2000 Crosslinker 254nm UV

External: 15D x 17.5W x 9.75H in. (381 x 445 x 248 mm) Internal Chamber: 11.3D x 11.4W x 3.6H in. (287 x 290 x 91 mm)
