SPECTRO-UV N​DT 手持式紫外灯

uVision™ 365 系列IP 级检查灯,提供高强度或标准强度;提供手机版!适用于所有 UV-A 检查,无风扇散热系统,ISO 3059 标准;uVision™ 365 豪华系列,P 级豪华检查灯,提供高强度或标准强度;提供手机版!无损检测无风扇散热系统符合 ASTM 和 RRES。uVision™ 365 Z 型号,带手柄内锂离子电池。可充电,IP65,提供多种强度和合规性。

在线咨询 全国热线
13818683556
产品详情

SPECTRO-UV NDT 手持式 UV-A LED 紫外灯

uVision™ 365 系列IP 级检查灯,提供高强度或标准强度;提供手机版!适用于所有 UV-A 检查,无风扇散热系统,ISO 3059 标准;

uVision™ 365 豪华系列,P 级豪华检查灯,提供高强度或标准强度;提供手机版!无损检测无风扇散热系统符合 ASTM 和 RRES


uVision™ 365 Z 型号,带手柄内锂离子电池。可充电,IP65,提供多种强度和合规性。

UVISION™ 365 SERIES NDT UV LAMP

Meet ISO 3059 Standards

Lightweight, IP 65 Rated inspection lamps can be used in nondestructive evaluation, forensics, and security inspections. In addition to three powerful UV-A LEDs, the uVision comes with a convenient White LED for illuminating work areas.


UV-365EH/UV-365ES无损检测紫外灯

UV-365EH/UV-365ES无损检测紫外灯

UV-365MEH无损检测紫外灯

UV-365MEH无损检测紫外灯




UV-365ZEH无损检测紫外灯

UV-365ZEH无损检测紫外灯

Product No. Description

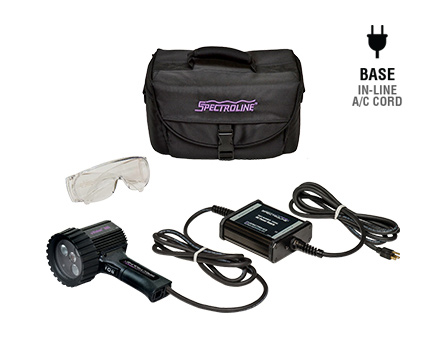

UV-365ES Standard Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, Heavy-Duty 8′ AC Cord, UVS-30 Spectacles & Soft Carrying Case
UV-365EH High Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, Heavy-Duty 8′ AC Cord, UVS-30 Spectacles & Soft Carrying Case
UV-365ZEH High Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, In-Handle Lithium-Ion Battery, 130448 Charger, Heavy-Duty 4′ AC Cord, UVS-30 Spectacles & Protective Case

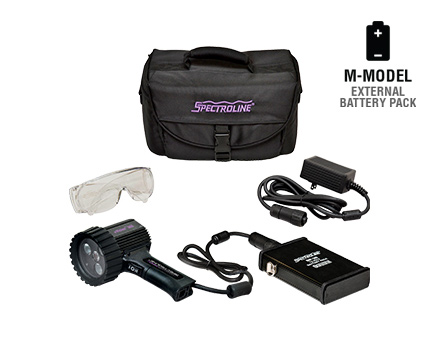

UV-365MEH High Intensity, (3) UV-A LEDs, (1) White Light LED with FP-600 Borofloat Filter Protector, BP-30 NiMH Battery Pack, Heavy-Duty 8′ AC Cord, UVS-30 Spectacles & Soft Carrying Case

Also available in foreign voltages

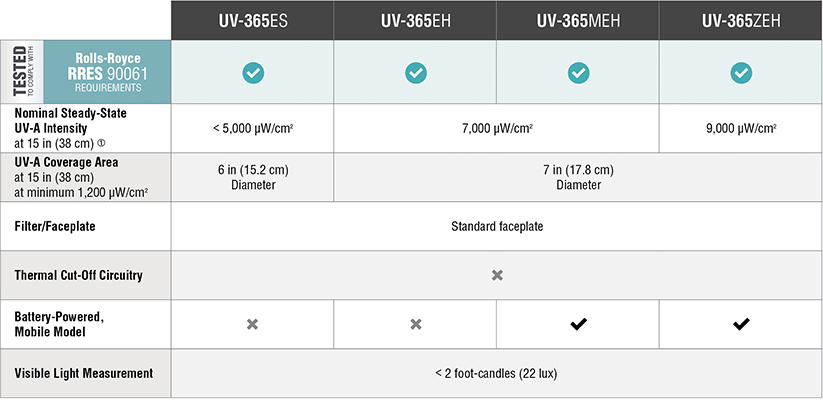

UV-365EH/UV-365ES无损检测紫外灯

➀ UV-A intensity reading taken with the Spectroline AccuMAX™ Series meter, and is factory set to the value shown.
 Each lamp is fitted with an 8-foot cord and the appropriate plug for the country of destination. Also available in 20-foot cord models.


FOR USE IN ANY NONDESTRUCTIVE EVALUATION OR SPECIALTY APPLICATION THAT REQUIRES UV-A LIGHT.

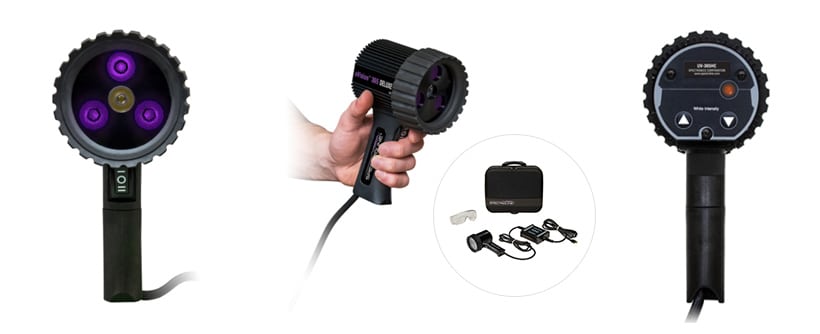

UVISION™ 365 DELUXE SERIES NDT uv lamp

IP 65 RATED – Dust Tight/Protected Against Jets of Water so your lamp is protected in harsh environments
FANLESS & COOL RUNNING – No fan means fewer repairs and no dust clogs, and the lamp stays cool to the touch, cutting down on fire and burn hazards
LIGHTWEIGHT & RUGGED – Lightweight enough for using all day, and rugged enough for your work environment
WHITE LIGHT INTENSITY ADJUSTMENT – Easier on the eyes of NDT Inspectors
EXTREMELY LOW VIOLET HUE/VISIBLE LIGHT EMISSION – Brilliant fluorescent responses



Rolls Royce RRES 90061, ASTM 3022, and Airbus AITM6-1001 Compliant Versions:

Product No. Description
UV-365SBLC Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, FP-600 Borofloat Filter Protector, 8′ AC Cord, UVS-30 Spectacles & Protective Case
UV-365ZSBLC Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, In-Handle Lithium-Ion Battery, 130448 Charger, FP-600 Filter Protector, 4’ AC Cord, UVS-30 Spectacles & Protective Case
UV-365MSBLC Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UVA Pass Filters, BP-30 NiMH Battery Pack, 126834 AC Charger, FP-600 Borofloat Filter Protector, 8’ AC Cord, UVS-30 Spectacles & Protective Case
UV-365SBLCR Standard Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, FP-600 Borofloat Filter Protector, Reel with 50′ Cord, 8′ AC Cord, UVS-30 Spectacles

ASTM E3022 Compliant Versions:

Product No. Description
UV-365HC High Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UVA Pass Filters, FP-600 Borofloat Filter Protector, 8′ AC Cord, UVS-30 Spectacles & Protective Case
UV-365ZHC High Intensity, ASTM, (3) UV-A LEDs, (1) White Light LED with Faceplate with UV-A Pass Filters, Filter Protector, In-Handle Lithium-Ion Battery, AC Charger with 4’ Cord, UV Spectacles & Carrying Case
UV-365MHC High Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UVA Pass Filters, BP-30 NiMH Battery Pack, 126834 AC Charger, FP-600 Borofloat Filter Protector, 8’ AC Cord, UVS-30 Spectacles & Protective Case
UV-365HCR High Intensity, (3) UV-A LEDs, (1) White Light LED with 128196 Faceplate with UV-A Pass Filters, FP-600 Borofloat Filter Protector, Reel with 50’ Cord, 8′ AC Cord, UVS-30 Spectacles

UVISION™ 365 DELUXE SERIES NDT uv lamp



*These versions are adjusted to ensure that they provide a maximum steady-state UV-A intensity of less than 5,000 μW/cm² at 15 in (38 cm)
             ➀ UV-A intensity reading taken with the Spectroline AccuMAX™ Series meter, and is factory set to the value shown.
             Each lamp is fitted with an 8-foot cord and the appropriate plug for the country of destination. Also available in 20-foot cord models.

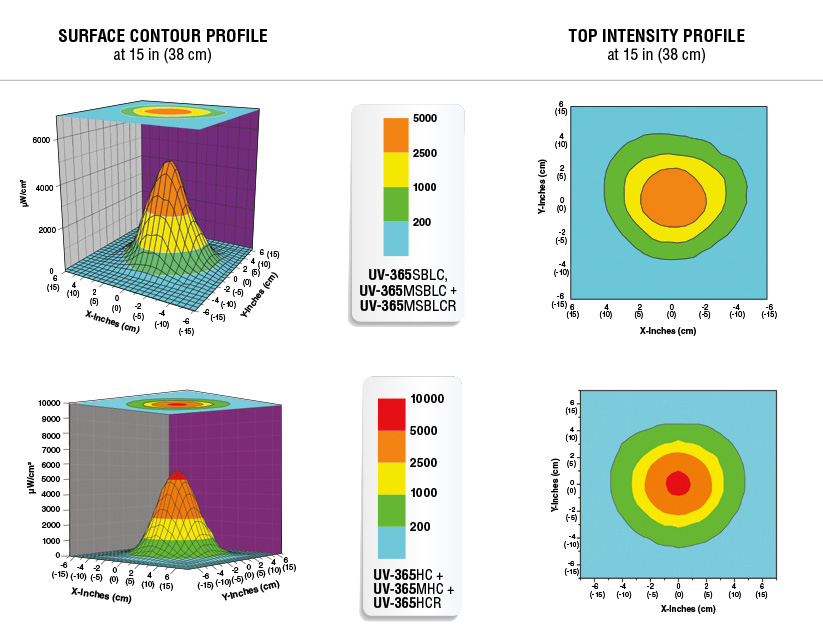

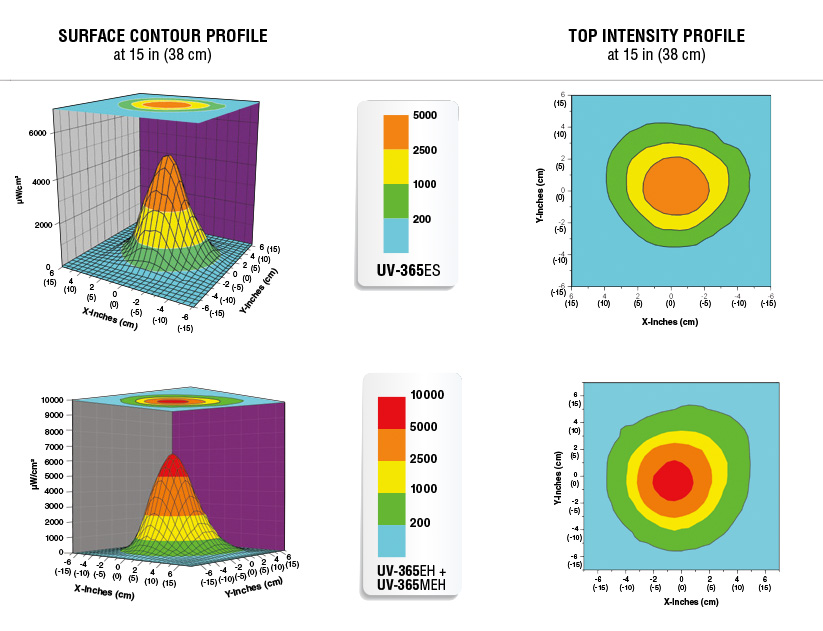

Beam-Profiles-uVision-High (1).jpg

FOR USE IN ANY MPI/LPI NONDESTRUCTIVE EVALUATION

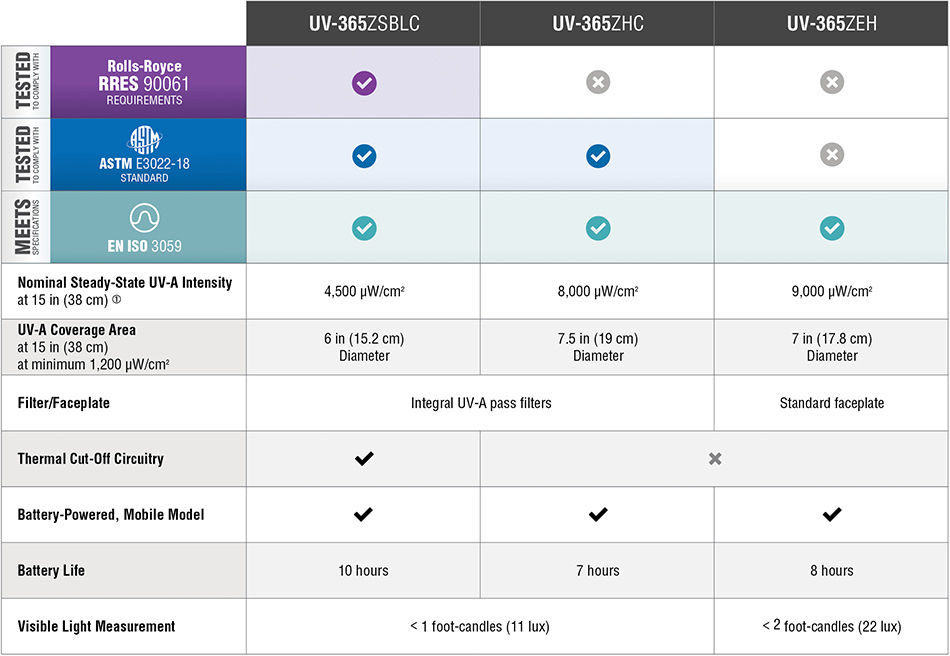

UVISION™ 365 Z-MODEL UV LED LAMP

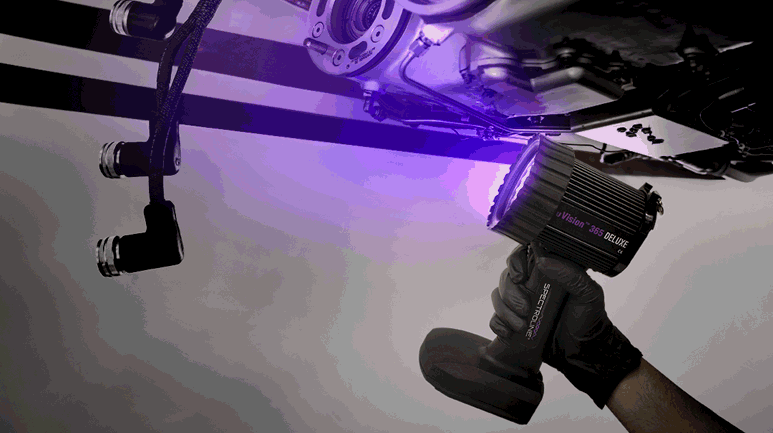

uVision-animated-optimized (1).gif

THE UVISION™ 365 SERIES IS SPECTRO-UV’S INNOVATIVE LINE OF COMPACT, BROAD-BEAM, HANDHELD NDT LAMPS.

Key Features and Benefits
Cordless – portable for use in the field
Battery in the handle – self-contained unit
Long battery life: 8-12 hours
Quick charging: 3-4 hours
Large battery base – can stand up on its own
D-ring hook on backplate – for storage or belt clip
IP65 rating – dust-proof and water-resistant
Cool-running, fan-less design
Wide, even beam profile
Long-lasting UV-A lenses protect against solarization
Adjustable white light
Meets ISO EN 3059 specs for fluorescent inspection
ASTM E3022 Compliant Versions Available
RRES 90061 Compliant Versions Available
AITM6-1001 Compliant Versions Available



SPECTRO-UV N​DT 手持式紫外灯生产厂家的批发价格请咨询:13818683556(可直接添加微信咨询)
