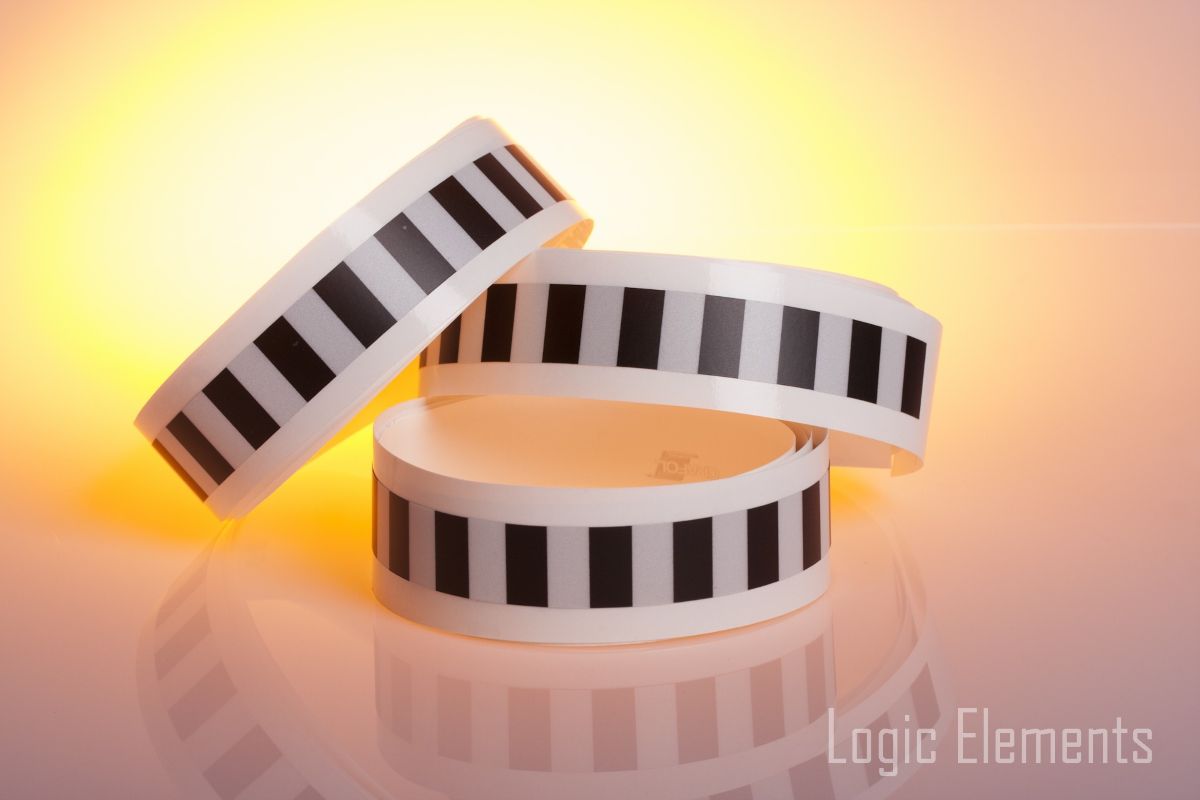

VMS-1911黑白斑马反射胶带/反光贴纸

VMS-1911 - 斑马胶带

VMS-1911 是一种斑马反射带，设计用于放置在旋转轴上并由激光光学传感器感应。胶带的正面由塑料涂层保护。胶带的背面包含一层粘合剂，在 70 °C 以上的温度下会硬化，使胶带非常耐用。该胶带可以在 -40°C 至 130°C 的温度范围内运行，而不会发生任何显着变化。

胶带的宽度设计是为了满足涡轮机操作员的特殊安装要求，即转子放置的通行量、轴传感器间距和检测精度。典型的应用主要是扭转振动测量和扭矩测量。Zebra 胶带旨在加快系统安装速度并提高系统的完整性。

VMS-1911 与 VMS 光学传感器兼容，例如 VMS-1503 和 VMS-1903

VMS-1911 斑马胶带技术参数：

VMS-1911 zebra reflection tape

The VMS-1911 is the zebra reflection tape that is designed to be placed on the rotating shaft and sensed by the laser optical sensor. The front face of the tape is protected by plastic coating. The back side of the tape contains an adhesive layer that hardens at temperatures above 70 °C that makes the tape very resistant. The tape can be operated in temperature range from -40°C to 130°C without any significant changes.

The width of the tape was designed to fullfill special installation demands by the turbine operator, which is a rotor placing tollerance, shaft sensor spacing and detection accuracy.  Typical applications are mostly the torsional vibration measurement, and Torque measurement. The Zebra tape was designed to speed-up system installation and to get better integrity of the system.

VMS-1911 is compatible with all VMS optical sensors such as VMS-1503 and VMS-1903.
