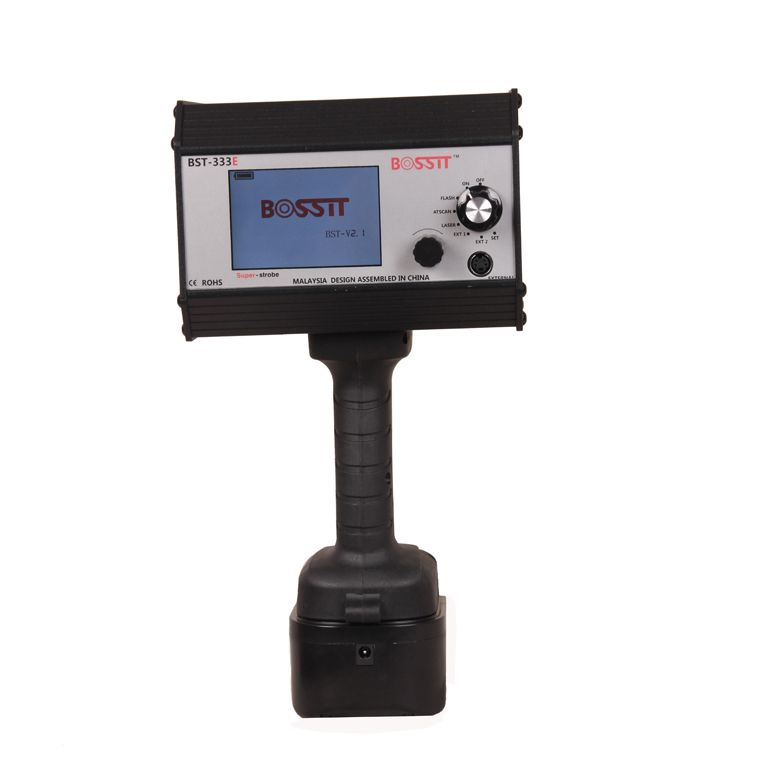

BST-333E手持式大功率LED频闪仪是采用激光传感器识别图案技术，来实现自动闪光同步检验印刷图案及光标的产品；它具备激光自动定位、激光定长、激光设定个数等多种频闪方式、同时具备自动行扫描、相位角度位移、单次曝光时间设定、占空比角度时间设定、外触发定长频闪等功能；其光源采用美国科瑞10瓦大功率灯珠，34颗或者75颗LED按并联分布，整体亮度高、光斑均匀、寿命超过30，000小时，全球质保两年（电池一年）  转速测量高每分钟120万转 ；显示采用480x320彩色3.2寸LCD屏，操作按钮选用ALPS切换开关及旋转编码器，寿命长；外置锂电池盒，充满电后单次使用时间10小时以上。

BST-333E手持式大功率LED频闪仪是用来测量高速运动的物体，当频闪仪的闪光速度与高速运动的物体速度相同步时，我们看到的是一个相对静止的状态。这个原理使我们可以清晰的观察到运动中的齿轮咬合、各类转子的工作情况。

BST-333E手持式大功率LED频闪仪广泛用于包装印刷行业，检测印刷品质、模切、打孔、折叠；用于纺织业的纺纱机和绕线机上锭子的转速测量；用于机械制造业的非接触性转速测量、检测震荡幅度和振动频率，以及加工中心刀具的磨损情况；还可用于飞机制造、汽车制造、电缆喷码、采矿业、造船、钢铁、化工、光学、医疗等行业。

BST-333E手持式大功率LED频闪仪主要参数

设定精度  （内部振动）： 0.01%± 1 digit（25℃时）

设定分辨率（内部振动）：

36 .0~12,000FPM ± 0.6 FPM

0.6~200HZ ± 0.01 HZ

12,000.1~20，000FPM        ± 6 FPM

200.1~2,000 HZ             ± 0.1 HZ

120,000.1~1,200，000FPM    ±30 FPM

2,000.1~20,000 HZ          ± 0.5 HZ

功率：≤ 350 W

尺寸（不含手柄及电池盒）：166mm*110mm*165mm

重量：约1.6 Kg

LED规格及性能：CREE 10W; 寿命30000 H

锂电池规格及容量：DC 16.8 V/2600 ma/H

单位：转速、频率

测量范围： 36 ~1,200,000 FPM

X2 、1/2：倍频、半倍频

外部输入：传感器脉冲信号触发（光电、齿轮传感器、编码器）

BST-333E big power hand-held LED strobe is our newest developed high-tech product, it is the first set using laser sensor recognize pattern technology to realize automatic flash sync to inspect printing pattern; It is an automatic positioning, fixed length, laser set number flashes in a variety of ways, at the same time with automatic scan, phase angle measurement, single exposure time setting, duty cycle time setting, external trigger fixed-length function, etc; The light source adopts USA CREE 10 watts power, 34pcs or 75pcs LED lamps in parallel distribution, high brightness, life time more than 30000 hours, guarantee for two years (battery one year); Highest speed measuring 1.2 million revolutions per minute; Display with 480 x320 color 3.2 -inch LCD screen, Japanese ALPS switch and rotary encoder, with two extra lithium battery pack for replacement, can use more than 20 hours after charge.

This instrument used to measure movement of object, when strobe flash speed same with high speed moving object, what we see is a relatively static state. Under this principle we can clearly observed movement of the gear wheels, working condition of all kinds of rotor.

This instrument is also widely used in packaging and printing industry, check printing quality, die cutting, punching, folding; Used for textile spinning and winding machine spindle speed measurement; Used in machinery manufacturing non-contact speed oscillation amplitude and vibration frequency measurement, detection, tool wear and machining center; Can also be used in aircraft manufacturing, automobile manufacturing, printing, mining, shipbuilding, steel cable, chemical, optical, medical and other industries.

2.Main parameter and function

Setting accuracy（vibration）： 0.01% ± 1 digit（25℃）

Setting resolution（vibration）：

36 .0~12,000FPM   ± 0.6 FPM

0.6~200HZ    ± 0.01 HZ

12,000.1~20，000FPM       ± 6 FPM

200.1~2,000 HZ             ± 0.1 HZ

120,000.1~1,200，000FPM   ±30 FPM

2,000.1~20,000 HZ          ± 0.5 HZ

Power：≤ 350 W

Dimension-not include handle and battery pack：166mm*110mm*165mm

Weight：about 1.6 Kg

LED specification and function：CREE 10W; life time 30000 H

Battery：DC 16.8V/3000 ma/H

Units：speed, frequency

Range： 36 ~1,200,000 FPM

X2 、1/2：multiply or divide by 2

External input: Sensor pulse signal to trigger (photoelectric, gear sensor, encoder)
