  • 美国蒙那多ROLS-P激光转速传感器

美国蒙那多ROLS-P激光转速传感器

美国蒙那多Monarch远程光学激光转速传感器(激光)ROLS具有极强的通用性,能够在很长的距离内(25英尺)工作。ROLS-W(镀锡线终端)和ROLS-P(1/8英寸电话插头终端)是带螺纹的不锈钢远程光学激光转速传感器,带有可见的红色激光光源。读取1-250,000 RPM。这些传感器都具有“目标”绿色LED指示灯。

在线咨询 价格咨询
13818683556
美国蒙那多ROLS-P激光转速传感器产品详情

美国蒙那多ROLS转速激光传感器

速度范围:1-250000 RPM

红光激光器:2级(根据IEC 60825-1-2014),大激光输出大1mW,激光波长650nm(可见红色)

电源:3.3–15 V dc,0.13w,大0.4W,ROLS24-W:24 V dc±10%,大0.4W

工作温度:-10°C至70°C

标准电缆:2.4米,(可加长到7.6米)

标准配置:带防松螺母的安装支架和3.6米T-5反光带

激光转速传感器ROLS-P和ROLS-W的区别:

ROLS-P型:远距离光学激光传感器,带2.4米电缆、3.5 mm电话插头、带防松螺母的安装支架和3.6米T-5反光带

ROLS-P-25型:远距离光学激光传感器,带7.6米电缆、3.5 mm电话插头、带防松螺母的安装支架和3.6米T-5反光带

ROLS-W型:远距离光学激光传感器,带2.4米电缆、3根镀锡引线、带防松螺母的安装支架和3.6米T-5反光带

ROLS24-W型:远距离光学激光传感器,具有24 V直流输入电源、2.4米电缆、3根镀锡引线、带防松螺母的安装支架和3.6米T-5反射带

ROLS24-W-25型:远距离光学激光传感器,具有24 V直流输入电源、7.6米电缆、3根镀锡引线、带防松螺母的安装支架和3.6米T-5反光带


美国蒙那多(美国monarch instrument)Monarch远程光学激光传感器(激光)ROLS具有极强的通用性,能够在很长的距离内(线长25英尺)工作。ROLS-W激光转速传感器(镀锡线终端)和ROLS-P(1/8英寸电话插头终端)是带螺纹的不锈钢远程光学传感器,带有可见的红色激光光源。读取1-250,000 RPM。这些传感器都具有“目标”绿色LED指示灯。

美国蒙拿多ROLS激光转速传感器

美国蒙那多ROLS激光传感器有4个型号:

ROLS-W(有线),
ROLS-P(1/8英寸电话插头),
ROLS24-W(有线,24 VDC输入电源),
ROLS-P-25(1/8英寸电话插头,带25'电缆)

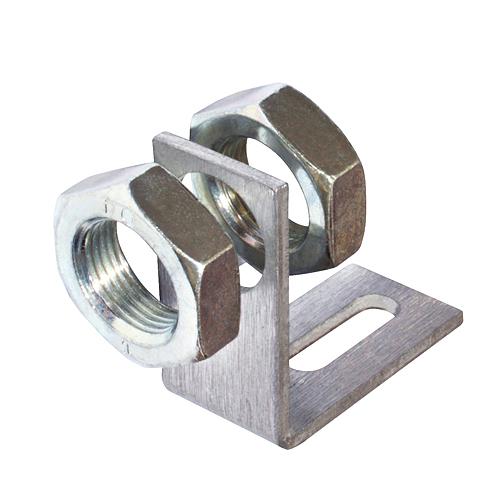

美国蒙拿多ROLS激光传感器的安装支架和螺母:


美国蒙拿多ROLS激光转速传感器的安装支架和螺母

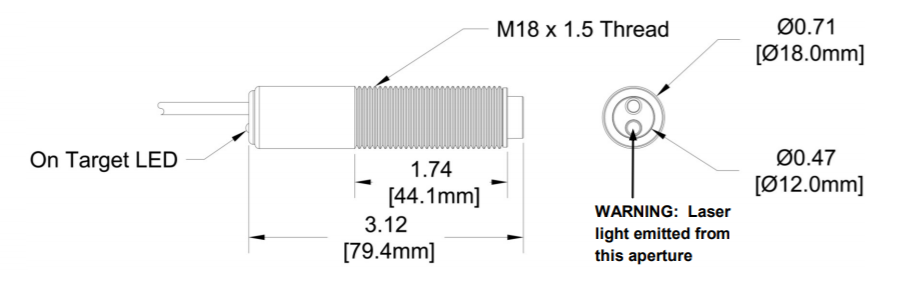

美国蒙拿多ROLS激光传感器的产品尺寸:

美国蒙拿多ROLS激光转速传感器的产品尺寸

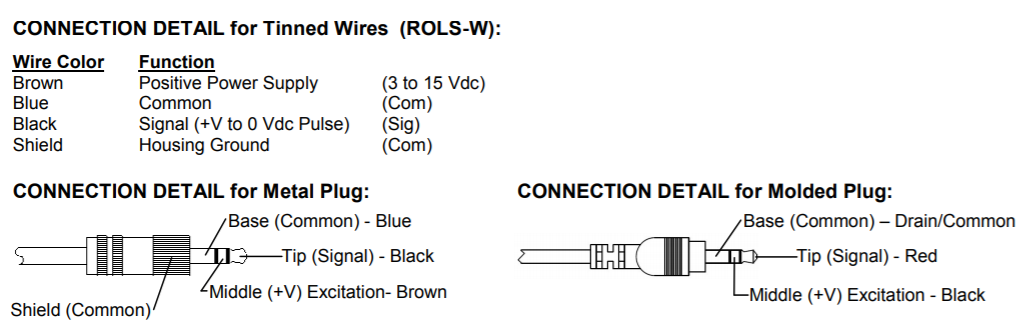

美国蒙拿多ROLS激光传感器的接线方法:

美国蒙拿多ROLS激光转速传感器的接线方法

美国蒙那多ROLS - 远程光学转速激光传感器

ROLS-五种型号可供选择!

产品均包括一根 8 英尺长的电缆、带卡入螺母的安装支架和 12 英寸的 T-5 反光胶带。ROLS-P-25 和 ROLS24-W-25 包括一根 25 英尺长的电缆。

Five Models to choose from!

All include an 8 ft. cable, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape. ROLS-P-25 and ROLS24-W-25 include a 25 ft. cable.

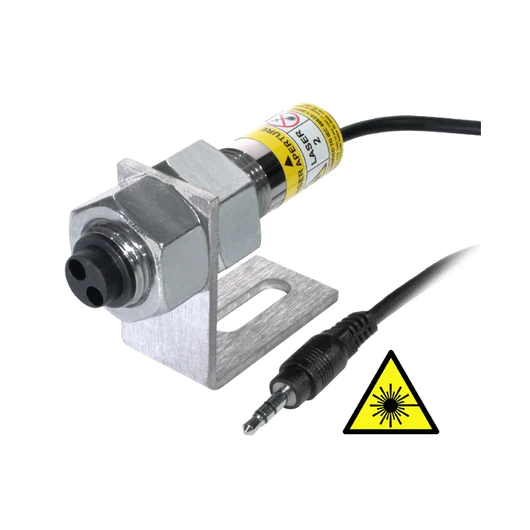

ROLS-P和ROLS-P-25激光转速传感器的的外观

上图为ROLS-P和ROLS-P-25激光转速传感器的的外观

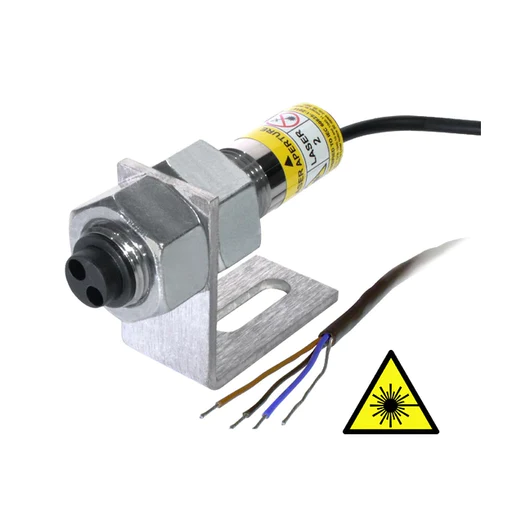

ROLS-W 、ROLS24-W和ROLS24-W-25激光转速传感器的外观

上图为ROLS-W 、ROLS24-W和ROLS24-W-25激光转速传感器的外观

Description

1-250,000 RPM. Extremely versatile and able to work over long distances (up to 25 feet). The ROLS-W (tinned wire termination) and ROLS-P (1/8" phone plug termination) are threaded stainless steel remote optical sensors with a visible red laser light source. All these sensors have the On-Target green LED Indicator.

Model ROLS-P: Remote Optical Laser Sensor with 8 ft. cable, 1/8" [3.5 mm] phone plug connector, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS-P-25: Remote Optical Laser Sensor with 25 ft. cable, 1/8" [3.5 mm] phone plug connector, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS-W: Remote Optical Laser Sensor with 8 ft. cable, 3 tinned leads, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS24-W: Remote Optical Laser Sensor with 24 V dc input power, 8 ft. cable, 3 tinned leads, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

Model ROLS24-W-25: Remote Optical Laser Sensor with 24 V dc input power, 25 ft. cable, 3 tinned leads, mounting bracket with jam nuts, and 12 inches of T-5 Reflective Tape

技术参数以英文为准:

远程光学激光传感器具有可见的红色激光光源和目标指示器上的绿色LED。2级激光源在设置过程中充当瞄准装置,可以在距离旋转物体大偏移角度为60度的情况下测量1-250000 RPM的速度,距离可达25英尺。

传感器安装在303不锈钢螺纹管中,配有90度安装支架、防松螺母和8英尺屏蔽电缆。ROLS-P配有一个3.5毫米(1/8英寸)外螺纹立体声插头适配器。ROLS-W配有4根镀锡电线。

规格:

速度范围:1-250000 RPM

照明:可见红色激光,2级

激光规范:分类:2级(根据IEC 60825-1 Ed 1.2 2001-8)

符合FDA关于激光产品的性能标准,但根据激光的偏差除外,2001年7月26日第50号通知。

大激光输出:1mW

脉冲持续时间:连续

激光波长:650 nm

光束发散度:<1.5 mrad

梁直径:4 x 7 mm,典型高度为2米

激光二极管寿命:8000工作小时MTBF(1年保修)

目标指示器上:导线端盖上的绿色LED

工作范围:高达25英尺[7.6米],偏离目标60度

功率要求:3.0-15 Vdc,0.13W

输出:目标存在时的正脉冲–输出电压=电源电压

可选–开路集电极或TTL脉冲,负脉冲(联系工厂)

工作温度:14°F至158°F[-10°C至70°C]

湿度:温度高达88°F[31°C]时的大相对湿度为80%,线性下降至50%

104°F[40°C]时的相对湿度

连接:3.5 mm[1/8英寸]公立体声插头(ROLS-P)或镀锡导线(ROLS-W)

电缆长度:8英尺[2.4米]

材料:303不锈钢,配有两个M18锁紧螺母和安装支架

镜头:丙烯酸塑料

尺寸:螺纹管3.12英寸x 0.71英寸直径[M18 x 1.5 x 79.4 mm]长

激光辐射

避免眼睛直接接触

2类激光产品

大输出功率:1mW

发射波长:650nm


SAFEGUARDS AND PRECAUTIONS:

DESCRIPTION:

The Remote Optical Laser Sensor has a visible red laser light source and green LED on-target indicator. The class 2 laser source acts as the aiming device during setup and can accurately measure speeds from 1-250,000 RPM from a distance of up to 25 feet with a maximum offset angle of 60 degrees from the rotating object.

The sensor is housed in a threaded 303 stainless steel tube and supplied with a 90 degree mounting bracket, jam nuts and an eight foot shielded cable. ROLS-P comes with a 3.5mm (1/8”) male stereo plug adapter. ROLS-W comes with 4 tinned wires.

SPECIFICATIONS:

Speed Range: 1-250,000 RPM

Illumination: Visible Red Laser, Class 2

Laser Specifications: Classification: Class 2 (per IEC 60825-1 Ed 1.2 2001-8)

Complies with FDA performance standards for laser products except for deviations pursuant to Laser

Notice No. 50, dated July 26, 2001.

Maximum Laser Output: 1mW

Pulse Duration: Continuous

Laser Wavelength: 650 nm

Beam Divergence: <1.5 mrad

Beam Diameter: 4 x 7 mm typical at 2 meters

Laser Diode Life: 8,000 operating hours MTBF (1 year warranty)

On-Target Indicator: Green LED on wire end cap

Operating Range: up to 25 feet [7.6 m] and 60 degrees offset from target

Power Requirement: 3.0 - 15 Vdc, 0.13W

Output: Positive pulse when target present – Output Voltage=Supply Voltage

Optional – Open Collector or TTL pulse, Negative pulse (Contact factory)

Operating Temp.: 14 °F to 158° F [-10 °C to 70° C]

Humidity: Maximum relative humidity 80% for temperature up to 88 °F [31 °C] decreasing linearly to 50%

relative humidity at 104 °F [40 °C]

Connection: 3.5 mm [1/8 inch] male stereo plug (ROLS-P) or Tinned wires (ROLS-W)

Cable Length: 8 feet [2.4 m]

Material: 303 Stainless Steel supplied with two M18 Jam Nuts and Mounting Bracket

Lens: Acrylic Plastic

Dimensions: Threaded Tube 3.12 in x 0.71 in diameter [M18 x 1.5 x 79.4 mm] long

LASER RADIATION

AVOID DIRECT EYE EXPOSURE

CLASS 2 LASER PRODUCT

MAX OUTPUT POWER: 1mW

EMITTED WAVELENGTH: 650nm

CLASSIFIED TO IEC 60825-1:2001
