美国蒙那多转速传感器ROS的说明书

作者:美国蒙那多 时间:2024-06-08 08:27:11浏览64 次

信息摘要:

ROS-W/ROS-P配有一根8英尺[2.4米]电缆,端接有4根镀锡线(ROS-W)或3.5毫米[1/8英寸]公头立体声插头(ROS-P),或可选地配有一根25英尺[7.6米]电缆(端接有3.5毫米[11/8英寸]公口立体声插头(ROS-P-25))。

插头可以从电缆上切下,引线可以剥离并连接,如上面镀锡线的连接细节所示。可选的25英尺[7.6毫米]延长电缆EC-25P一端带有插座,另一端带有3.5毫米[1/8英寸]公头立体声插头。

美国蒙那多转速传感器ROS-W/ROS-P能够检测由T-5反光贴纸组成的目标的反射脉冲,距离旋转物体36英寸[1米],角度45度。对于大多数应用,应在旋转物体的清洁区域使用½”[12mm]的方形反光带(T-5)。

美国蒙那多转速传感器ROS-W/ROS-P应进行安装(使用提供的防松螺母和铝制安装支架),并进行光学对准,以每转一次照亮目标。用户必须保持“稳定”或安装ROS-W/ROS-P以获得准确的测量结果。建议将光学传感器放置在与垂直方向成微小角度(15度)的位置,以便传感器仅接收来自反射标记的脉冲。ROS应距离反射目标至少1英寸,以避免错误触发。当ROS正确瞄准时,绿色LED目标指示灯将以输入频率闪烁。注意:绿色LED目标指示灯在低速时会闪烁,在高速时会保持稳定亮起。

美国蒙那多转速传感器ROS-W/ROS-P配有一根8英尺[2.4米]电缆,端接有4根镀锡线(ROS-W)或3.5毫米[1/8英寸]公头立体声插头(ROS-P),或可选地配有一根25英尺[7.6米]电缆(端接有3.5毫米[11/8英寸]公口立体声插头(ROS-P-25))。

插头可以从电缆上切下,引线可以剥离并连接,如上面镀锡线的连接细节所示。可选的25英尺[7.6毫米]延长电缆EC-25P一端带有插座,另一端带有3.5毫米[1/8英寸]公头立体声插头。

ROS-W将与接受脉冲输入的Monarch面板式转速表一起工作(例如ACT系列、DataChart 1250)。ROS-P和ROS-P-25将直接与Monarch手持式转速表、Deluxe Nova频闪仪型号(DA+、DB+、dax、dbx)和Phaser频闪仪(PB、pbx)频闪仪配合使用。具有BNC输出的传感器电源(SPS、SPSR)可用于那些需要传感器单独电源的应用。

通过将美国蒙那多转速传感器ros-w对准原始设计的荧光灯并观察信号输出上的120 Hz或100 Hz(电源频率的两倍)方波,可以随时检查ROS的正确操作。如果传感器与转速表一起使用,转速表的读数将为7200转/分或6000转/分。该传感器不会拾取较新的“节能”设计荧光灯。

美国蒙那多转速传感器ROS-W/ROS-P产品操作说明书下载:

美国蒙那多转速传感器ROS-W/ROS-P产品操作说明书.pdf

上海峰志仪器有限公司现货供应美国蒙那多光电转速传感器ROS-W/ROS-P和激光转速传感器ROLS-W/ROLS-P.

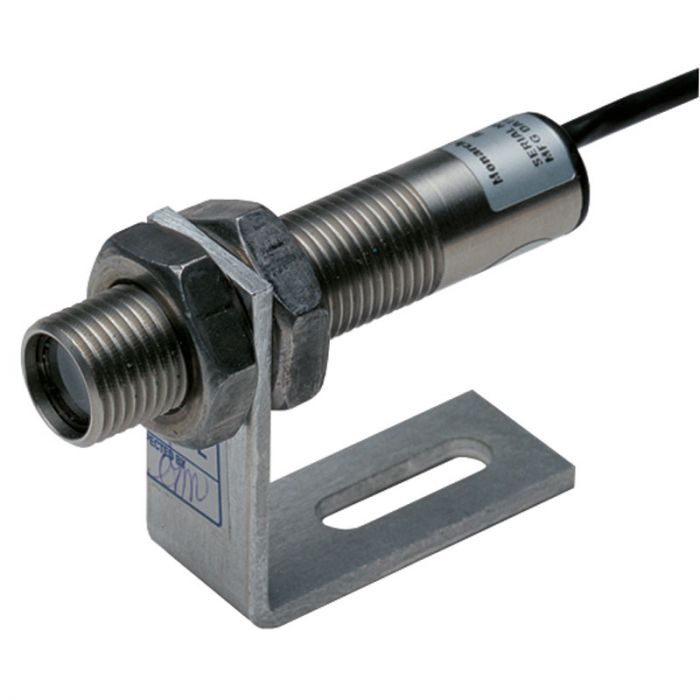

美国蒙那多转速传感器ROS-W/ROS-P

The ROS Remote Optical Sensor is capable of detecting a reflected pulse from a target consisting of T-5 Reflective Tape at distances of up to 36 inches [1 m] from the rotating object and angles up to 45 degrees. For most applications, a ½” [12mm] square piece of Reflective Tape (T-5) should be applied to a clean area on the rotating object.

The ROS should be mounted (using the supplied jam nuts and aluminum mounting bracket) and optically aligned to illuminate the target once per revolution. The user must hold “steady” or mount the ROS to obtain an accurate measurement. It is recommended that the optical Sensor be placed at a slight angle (15 degrees) from perpendicular, so that the Sensor will receive only pulses from the reflective marker. The ROS should be at least 1 inch from the reflective target to avoid false triggering. The green LED On-Target Indicator will blink at the input frequency rate when the ROS is properly aimed. NOTE: The green LED On-Target Indicator will blink on and off at slow speeds and remain on steady at high speeds.

The ROS is supplied with an 8 foot [2.4 m] cable terminated with 4 tinned wires (ROS-W) or a 3.5 mm [1/8 inch] male stereo plug (ROS-P) or optionally a 25 foot [7.6 m] cable terminated with a 3.5 mm [1/8 inch] male stereo plug (ROS-P-25).

The plug may be cut from the cable and the leads stripped and connected as shown in connection detail for tinned wire above. An optional 25 foot [7.6 mm] extension cable EC-25P is available with a female socket for the plug on one end, and a 3.5 mm [1/8 inch] male stereo plug on the other.

The ROS-W will work with all Monarch panel instruments that accept pulse inputs (e.g. ACT Series, DataChart 1250). The ROS-P and ROS-P-25 will work directly with all Monarch Handheld Tachometers, Deluxe Nova-Strobe models (DA+, DB+, dax, dbx) and Phaser Strobe (PB, pbx) Stroboscopes. A sensor power supply (SPS, SPSR) with BNC output is available for those applications that require a separate power source for the sensor.

Correct operation of the ROS can be checked at any time by aiming it at an original design fluorescent light and observing a 120 Hz or 100 Hz (two times your mains frequency) square wave on the signal output. If the sensor is being used with a tachometer, the tachometer will read 7200 RPM or 6000 RPM. The Sensor will not pick up newer “energy efficient” design fluorescent lights.
