  • 瑞典兰宝头盔式LED紫外线灯Labino UVG5
  • 瑞典兰宝头盔式LED紫外线灯Labino UVG5
  • 瑞典兰宝头盔式LED紫外线灯Labino UVG5
  • 瑞典兰宝头盔式LED紫外线灯Labino UVG5

瑞典兰宝头盔式LED紫外线灯Labino UVG5

瑞典兰宝头盔式LED紫外线灯/紫外线黑光灯/瑞典兰宝紫外线辐射灯Labino UVG5头盔的设计解放了操作者的双手,非常方便。Labino UVG5头盔式LED紫外线灯采用了特别的白光过滤器,大大降低了白光辐射。


在线咨询 价格咨询
13818683556
瑞典兰宝头盔式LED紫外线灯Labino UVG5产品详情



瑞典兰宝头盔式LED紫外线灯/紫外线黑光灯/瑞典兰宝紫外线辐射灯Labino UVG5头盔的设计解放了操作者的双手,非常方便。Labino UVG5头盔式LED紫外线灯采用了特别的白光过滤器,大大降低了白光辐射。

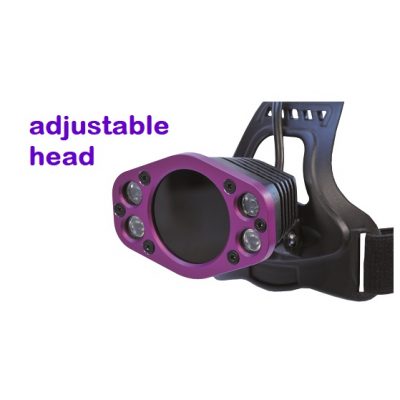

UVG5 2.0紫外线LED头灯是一种耐用,紧凑且可调节的头灯,在检查过程中可以解放您的双手,在磁粉荧光检查或磁力工作台检查中特别有用。它配备了一个紫外滤镜。UVG5 2.0是耐用的UV LED头灯。光束轮廓是当今市场上任何其他紫外线LED头灯中比较平滑的。根据型号的不同,光束直径为3-5英寸/ 8-12厘米,强度从≈4000至80 000μW/ cm2不等!根据IEC 62471,五个模型均具有3级风险分类。

UVG5 2.0 UV LED头灯经过专门设计,符合ASTM E3022-18和ISO 3059-12标准以及PRIMES设定的要求,包括但不限于劳斯莱斯RRES 90061,空中客车AITM6-1001,波音公司,美国空军和普惠公司。

三种型号(Spotlight-L127,Midlight-L128和Floodlight-L130)带有白光。您可以使用以下两种不同的白光来操作UVG5 2.0:
(a)强烈的“搜索”白光,用于黑暗和狭窄的空间,例如可以连续运行5小时并产生1200 fc(12000 lux)的管道和水箱;以及
(b)可以连续运行19小时并产生200 fc(2000勒克斯)的目视检查白光。

中光照明(PN:L129)和泛光照明(PN:L131)这两种型号是没有白光的型号,适用于在检查期间不允许使用白光的组织。该成员美军应该向UVG5 2.0 Midlight(PN:L129)。

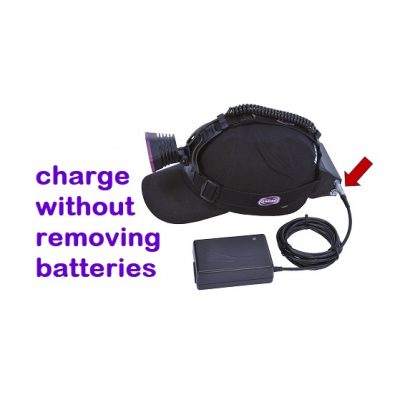

在Floodlight和Spotlight 365nm UV型号上,电池运行时间为8小时,在Midlight 365nm UV型号上,电池运行时间为14小时。它带有一个声音电量报警器,用于指示剩余电池时间。型号均可在3小时内充满电,而无需取出电池。

UVG5 2.0中光UV前头灯也是INSPECTOR KIT(PN:K001)的一部分,该套件还包括MB 3.0 Zeus UV手持设备,UVG3 2.0中光UV手电以及Apollo 2.0 UV和白光计。美国空军应要求提供PN:K002。


UVG5 2.0紫外线LED手电筒配备了不受日光影响的白光滤光片,防护等级为IP68,并且是PENETRANT RESISTANT,这是同类产品中的个紫外线LED头灯。有5种型号具有三种不同的光束大小,即Floodlight,Midlight和Spotlight。Floodlight和Midlight分别有两个模型,有和没有白光。UVG5 2.0系列具有2年保修。

UVG5 2.0泛光灯(PN:L131)无白色光具有在≈4000μW/厘米的中心的强度2产生的大约5英寸/ 12厘米的均匀光束轮廓,并且符合ASTM E3022-18,劳斯莱斯RRES 90061,空中客车AITM6-1001,波音公司,美国空军和普惠公司的要求。UVG5 2.0 Floodlight 365nm UV的连续电池运行时间为8小时。它没有白光。对于需要遵守与Nadcap相关的清单和PRIMES要求的航空航天相关用户而言,这是理想的选择。

UVG5 2.0泛光灯(PN:L130)与白色光具有在≈4000μW/厘米的中心的强度2产生的大约5英寸/ 12厘米的光束轮廓,并且符合ASTM E3022-18,劳斯莱斯RRES 90061和空客AITM6-1001,波音公司和普惠公司要求。UVG5 2.0 Floodlight 365nm UV的连续电池运行时间为8小时。它还带有白光,(a)强烈的“搜索”白光,用于黑暗和狭窄的空间,例如可以连续运行5小时并产生1200 fc(12000 lux)的管道和水箱;以及(b)a目视检查白光,可以连续运行19小时,并产生200 fc(2000勒克斯)的光。


没有白光的UVG5 2.0中光(PN:L129)在中心的强度约为9,000μw/ cm 2,产生的光束轮廓约为4英寸/9.5厘米,并符合ASTM E3022-18,USAF和PRATT&惠特尼要求。UVG5 2.0 Midlight 365nm UV的连续电池运行时间为14小时。它没有白光。美国军人应该要求这种模式。

具有白光的UVG5 2.0中光(PN:L128)在中心的强度约为9,000μw/ cm 2,产生约4英寸/9.5厘米的光束轮廓,并符合ASTM E3022-18和 PRATT&WHITNEY的要求。UVG5 2.0 Midlight 365nm UV的连续电池运行时间为14小时。它还带有白光,(a)强烈的“搜索”白光,用于黑暗和狭窄的空间,例如可以连续运行5小时并产生1200 fc(12000 lux)的管道和水箱;以及(b)a目视检查白光,可以连续运行19小时,并产生200 fc(2000勒克斯)的光。

具有白光的UVG5 2.0聚光灯(PN:L127) 在中心的强度为≈80,000μw/ cm 2(这是正确的!),产生大约3英寸/ 8 cm的光束轮廓,并符合ASTM E3022- 18。UVG5 2.0 Spotlight 365nm UV的连续电池运行时间为8小时。它还带有白光。

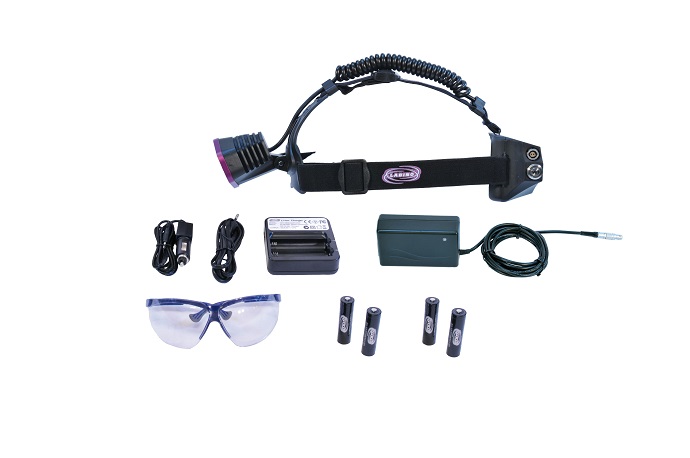

包裹包括:
UVG5 2.0 UV-A头灯: 1个您选择的UVG5 2.0灯,4个电池(PN:B115),1个壁装电源插座和汽车香烟出口的充电套件(PN:B200),1个UV-A护目镜(PN:S505),1个电源单元,无需拆卸电池即可充电(PN:B328)。



UVG5 2.0 UV LED headlight is a durable, compact and adjustable light that frees your hands during inspections, especially useful during yoke inspections or mag bench inspections. It is equipped with a white light block filter. UVG5 2.0 is the most durable UV LED headlight in the world. The beam profile is the largest and smoothest than any other UV LED headlight on the market today. Depending on the model, the beam diameter is 3-5 inches / 8-12 cm and with intensities that vary from ≈ 4 000 to 80 000 μW/cm2! All five models have a RISK CLASS 3 classification as per IEC 62471.

UVG5 2.0 UV LED headlight has been specifically designed to meet the ASTM E3022-18 and ISO 3059-12 standards as well as requirements set by the PRIMES, including but not limited to ROLLS-ROYCE RRES 90061, AIRBUS AITM6-1001, The Boeing Company, USAF and PRATT & WHITNEY.


Three models (Spotlight - L127, Midlight - L128 and Floodlight - L130) come with white light. There are two different white lights you can operate the UVG5 2.0 with:

(a) a strong “search” white light for use in dark and tight spaces such as pipes and tanks which can run 5 hours continuously and generate 1 200 fc (12000 lux) and

(b) a visual inspection white light which can run 19 hours continuously and generate 200 fc (2000 lux).

Two models, the Midlight (PN: L129) and Floodlight (PN: L131) are models without white light for organizations that do not allow the use of white light during inspections. Members of the US MILITARY should ask for UVG5 2.0 Midlight (PN: L129).

Battery run time is 8 hours on the Floodlight and Spotlight 365nm UV models and 14 hours on the Midlight 365nm UV models. It comes with an acoustic battery indicator that signals the battery time left. All models can be re-charged fully, within 3 hours, without removing batteries.

The UVG5 2.0 Midlight UV headlight is also part of the INSPECTOR KIT (PN: K001) that also includes MB 3.0 Zeus UV handheld, UVG3 2.0 Midlight UV flashlight and Apollo 2.0 UV and white light meter. US Airforce should ask for PN: K002.


The UVG5 2.0 UV LED flashlight is equipped with a white light block filter that is not affected by solarization, it is IP68 WATERPROOF and is PENETRANT RESISTANT, the first UV LED headlight of its kind. There are 5 models with three different beam sizes, Floodlight, Midlight and Spotlight. The Floodlight and the Midlight have two models each, with and without white light. The UVG5 2.0 Series carries a 2 YEAR WARRANTY.

UVG5 2.0 Floodlight (PN: L131) without white light has an intensity at the center of ≈ 4,000 μw/cm2 generating a homogeneous beam profile of approximately 5 inches / 12 cm, and is in compliance with ASTM E3022-18, ROLLS-ROYCE RRES 90061, AIRBUS AITM6-1001, The Boeing Company, USAF and PRATT & WHITNEY requirements. The continuous battery run time for UVG5 2.0 Floodlight 365nm UV is 8 hours. It does not have white light. This is ideal for Aerospace related users that need to comply with Nadcap related checklists and PRIMES requirements.

UVG5 2.0 Floodlight (PN: L130) with white light has an intensity at the center of ≈ 4,000 μw/cm2 generating a beam profile of approximately 5 inches / 12 cm, and is in compliance with ASTM E3022-18, ROLLS-ROYCE RRES 90061 and AIRBUS AITM6-1001, THE BOEING COMPANY and PRATT & WHITNEY requirements. The continuous battery run time for UVG5 2.0 Floodlight 365nm UV is 8 hours. It also comes with a white light, (a) a strong “search” white light for use in dark and tight spaces such as pipes and tanks which can run 5 hours continuously and generate 1 200 fc (12000 lux) and (b) a visual inspection white light which can run 19 hours continuously and generate 200 fc (2000 lux).

UVG5 2.0 Midlight (PN: L129) without white light has an intensity at the center of ≈ 9,000 μw/cm2 generating a beam profile of approximately 4 inches / 9.5 cm, and is in compliance with ASTM E3022-18, USAF and PRATT & WHITNEY requirements. The continuous battery run time for UVG5 2.0 Midlight 365nm UV is 14 hours. It does not have white light. Members of the US military should ask for this model.

UVG5 2.0 Midlight (PN: L128) with white light has an intensity at the center of ≈ 9,000 μw/cm2 generating a beam profile of approximately 4 inches / 9.5 cm, and is in compliance with ASTM E3022-18 and PRATT & WHITNEY requirements. The continuous battery run time for UVG5 2.0 Midlight 365nm UV is 14 hours. It also comes with a white light, (a) a strong “search” white light for use in dark and tight spaces such as pipes and tanks which can run 5 hours continuously and generate 1 200 fc (12000 lux) and (b) a visual inspection white light which can run 19 hours continuously and generate 200 fc (2000 lux).

UVG5 2.0 Spotlight (PN: L127) with white light has an intensity at the center of ≈ 80,000 μw/cm2 (it is correct!) generating a beam profile of approximately 3 inches / 8 cm, and is in compliance with ASTM E3022-18. The continuous battery run time for UVG5 2.0 Spotlight 365nm UV is 8 hours. It also comes with a white light.

If you are looking instead for a UV LED stationery light with fixed installation please read about GX ORION. If you are looking for a UV LED handheld light please read about MB 3.0 SERIES and/or BB 2.0 SERIES. If you are looking for a UV LED flashlight for quick inspections please read about UVG3 2.0 SERIES. If you are looking for a UV meter please consider a wireless meter, APOLLO 2.0. Don’t forget the unique measurement stand OLYMPOS which brings professionalism and standardization to your team.

Features
Battery run time is 8 hours on the Floodlight and Spotlight models and 14 hours on the Midlight models. It comes with an acoustic battery indicator that signals the battery time left. All models can be re-charged fully, within 3 hours, without removing batteries.

Three models (Spotlight - L127, Midlight - L128 and Floodlight - L130) come with white light. There are two different white lights you can operate the UVG5 2.0 LED headlight with,

(a) a strong “search” white light for use in dark and tight spaces such as pipes and tanks which can run 5 hours continuously and generate 1 200 fc (12000 lux) and

(b) a visual inspection white light which can run 19 hours continuously and generate 200 fc (2000 lux).

The Midlight (PN: L129) and Floodlight (PN: L131) are models without white light for organizations that do not allow the use of white light during inspections.

UVG5 2.0 UV LED headlight has been specifically designed to meet the ASTM E3022-18 and ISO 3059-12 standards as well as requirements set by the PRIMES, including but not limited to ROLLS-ROYCE RRES 90061, AIRBUS AITM6-1001, The Boeing Company, USAF and PRATT & WHITNEY.

Package includes
UVG5 2.0 UV-A HEADLIGHT: 1 UVG5 2.0 lamp of your choice, 4 Batteries (PN: B115), 1 Charging kit for wall outlet and car cigarette outlet (PN: B200), 1 UV-A Goggles (PN: S505), 1 Power Supply Unit to charge without removing batteries (PN: B328).
