美国蒙那多频闪仪的充电电池更换方法

作者:美国蒙拿多 时间:2021-03-07 14:08:24浏览304 次

信息摘要:

上海峰志仪器有限公司现货供应频闪仪BBX、Nova频闪仪DBX、相位器频闪仪PBX、振动频闪仪VBX的充电电池,如果客户不会更换,可以发回上海峰志仪器公司,我公司技术工程师帮助更换。

美国蒙那多频闪仪上海峰志仪器有限公司现货供应,主要型号有:

Nova-Strobe系列频闪仪:
BBL型 LED光源 精度0.01FPM 30-500,000FPM
DBL型 LED光源 精度0.01FPM 30-500,000FPM
PBL型 LED光源 精度0.01FPM 30-500,000FPM 转速 相位 延迟
bax型 数字液晶显示, 电源驱动 30--10,000FPM
bbx型 数字液晶显示, 电池驱动 30--10,000FPM
dax型 数字液晶显示, 电源驱动 30--20,000FPM
dbx型 数字液晶显示, 电池驱动 30--20,000FPM
频闪仪备用灯管L-1903
Phaser-Strobe pbx型频闪仪: 带时间及角度延迟 30--50,000FPM
Palm Strobe psx型 超小型频闪仪: 可拆卸充电电池 100-12,500FPM

美国蒙那多频闪仪的充电电池更换方法

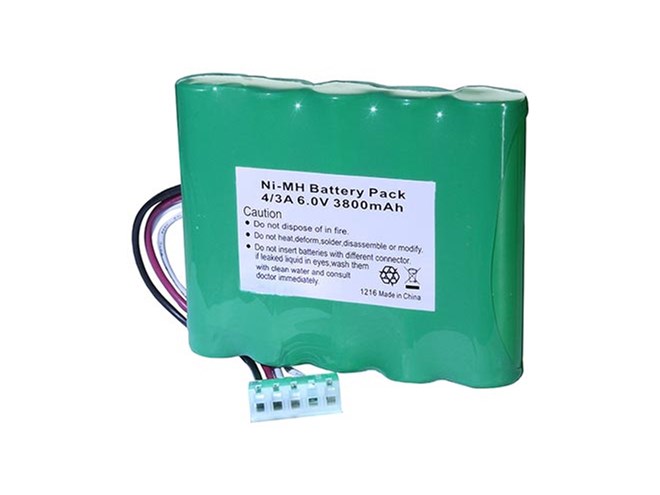

Internal Battery Pack for Nova-Strobe "X" xenon and "L" LED Series Strobes:

NiMH可充电镍氢电池组适用于以下Nova-Strobe型号:BBX,DBX,PBX,VBX,BBL,DBL和PBL
Rechargeable NiMH Battery Pack for the following Nova-Strobe models: BBX, DBX, PBX, VBX, BBL, DBL, and PBL.


频闪仪充电电池适用的型号:频闪仪BBX、Nova频闪仪DBX、相位器频闪仪PBX、振动频闪仪VBX

Nova-Strobe Battery Replacement
for models: Nova-Strobe BBX, Nova-Strobe DBX, and Phaser Strobe PBX, Vibration Strobe VBX
Taking the unit apart is the easy part . . .

 蒙拿多频闪仪的充电电池更换步骤

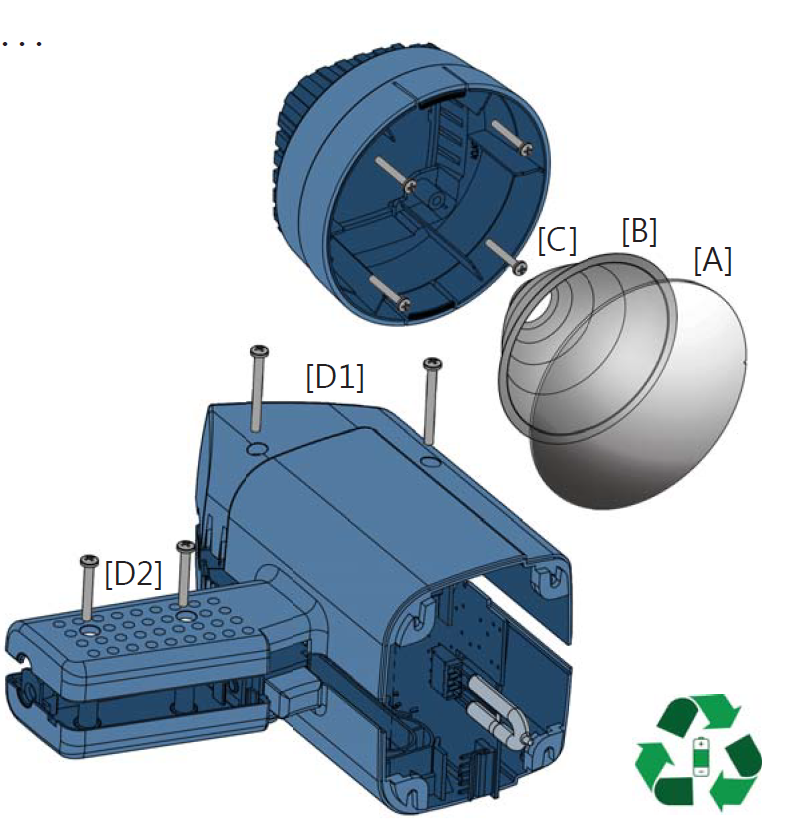

To do this, [A] remove the lens by separating the two tabs that hold it in place. Put a piece of tape on the side of the lens that faces out so it can be installed correctly. Slide
the refl ector [B] and lamp out as detailed in the Lamp Replacement section of your manual. This will expose four screws [C] that must be removed so the refl ector housing
can be removed from the main body.


There are then four additional screws [D1] & [D2] in the case halves opposite the input and output jacks that must be removed.
The case halves can now be separated,exposing the batteries. They should be sent to a recycling center or returned to Monarch for disposal.
Before you open the case, know that during the reassembly there are multiple points thatneed to align correctly to close the case securely.
Some of them include:
• Display board sits in groove
• DC Connector spans both case halves
• Mounting T-nut sits in slot as shown
• Lanyard knot surrounds screw standoff and protrudes through the notch in the case
• Trigger sits in case brackets with wires tucked out of the way
• PCB aligns in a retaining groove
• Battery holders (2) nests in brackets, there is a right and wrong way to insert them

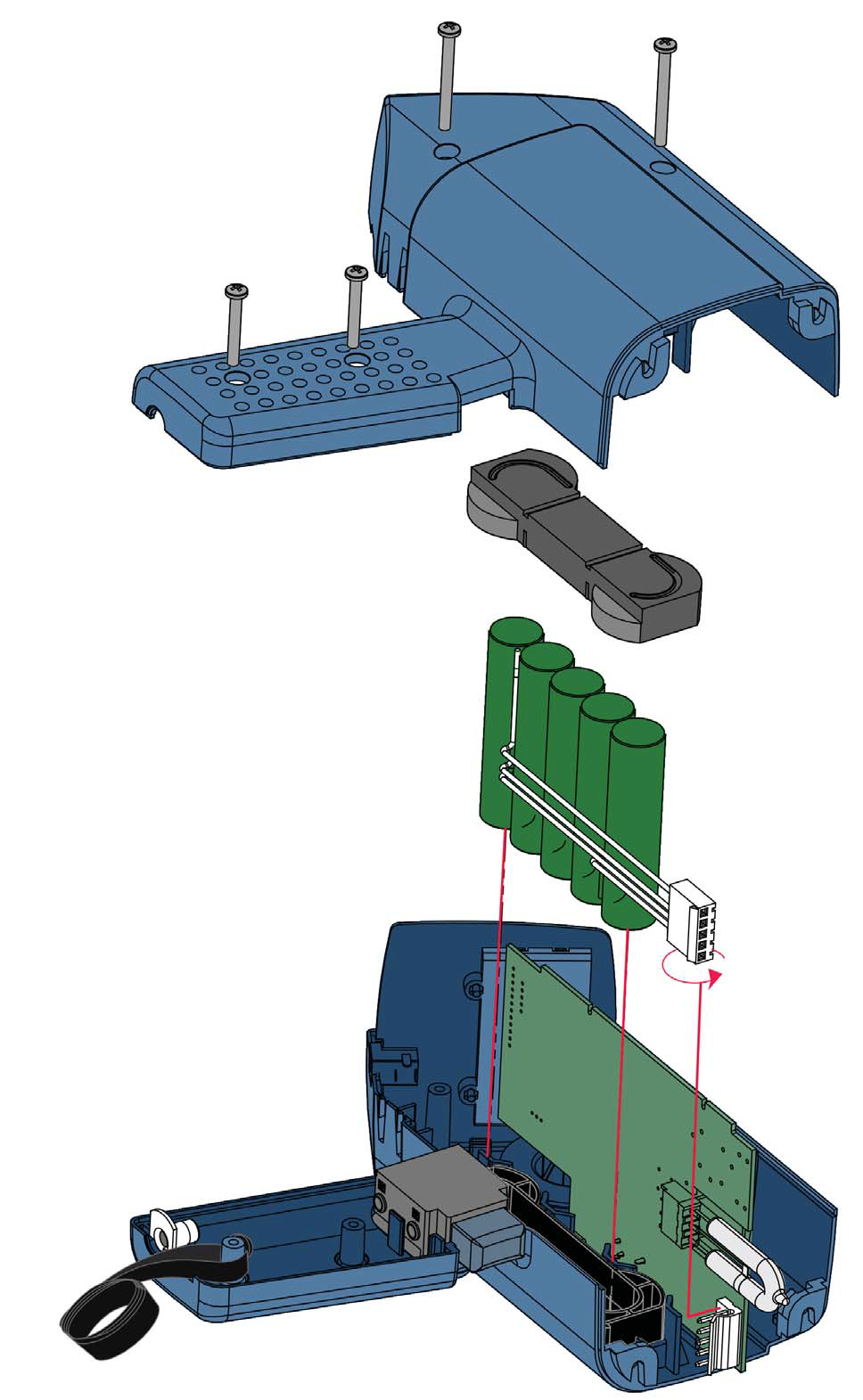

 Replace the battery

Ensure that the replacement battery is plugged into the PCB fi rmly. Carefully place the right half (1055-4241-111) onto the left (1055-4242-111).
Align the display board [F], battery [G], and main PCB [H] into the slots provided in the case. Align the display and battery fi rst, then from the front of the unit, guide the PC Board into the retaining slots with a wooden stick. Ensure the trigger wires [I] and DC Jack [J] are properly in place.
Fasten both halves using two 2” self tapping screws [D] (1053-3328-001) through the body of the right half. Do not over tighten screws.
Gently pry apart case halves at the base of the handle and insert tee nut [K] (1053-0270-001) into slot in left handle.
Slip knotted end of wrist strap [L] (3051-2000-015) over left half handle standoff and through slot provided.
Carefully press case handles together, ensuring the wrist strap fi ts into the notch provided and no wires are pinched between the case halves.
Re-attach the refl ector housing.
Do not over tighten screws [C], [D1], [D2].


上海峰志仪器有限公司现货供应蒙拿多频闪仪、频闪仪灯泡、频闪仪的充电电池,咨询电话:13818683556

美国蒙那多便携式频闪仪

多年来,Monarch Instrument一直在制造手持式频闪仪,以补充我们的固定式频闪仪。新星-PRO ® 是一系列功能强大的便携式目视检查和速度测量工具。Monarch将我们的手持式LED频闪仪的所有功能与全功能激光转速表结合在一起,从而创建了一种紧凑,符合人体工程学,功能极其强大的二合一预测维护工具。NOVA-频闪LED 家族坚固耐用的工业频闪仪的提供用于执行停止运动诊断检查和RPM的测量极其明亮,均匀的光输出。另外,Monarch还提供Palm-Strobe X(手持式移相器设计,可单手操作以实现快速分数RPM调整),以及VBX Vibration Strobe(振动式选通),其独特设计旨在为多个数据收集器和FFT分析仪触发的,瞬时同步加速度计。
在这里,您将找到适合任何应用的合适的频闪仪。

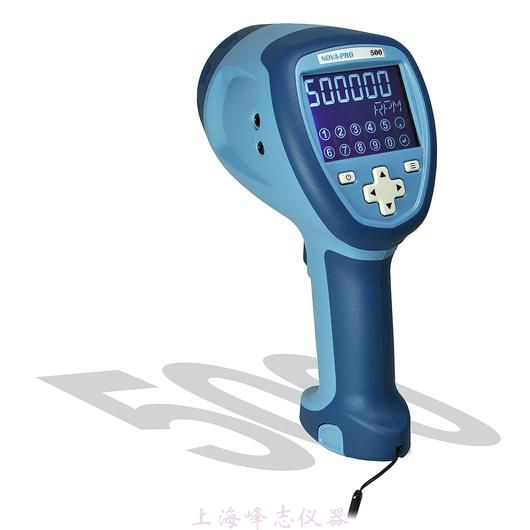

Nova-Pro®100 LED频闪仪/转速表
