  • 非接触远距离激光转速表LUYOR-925

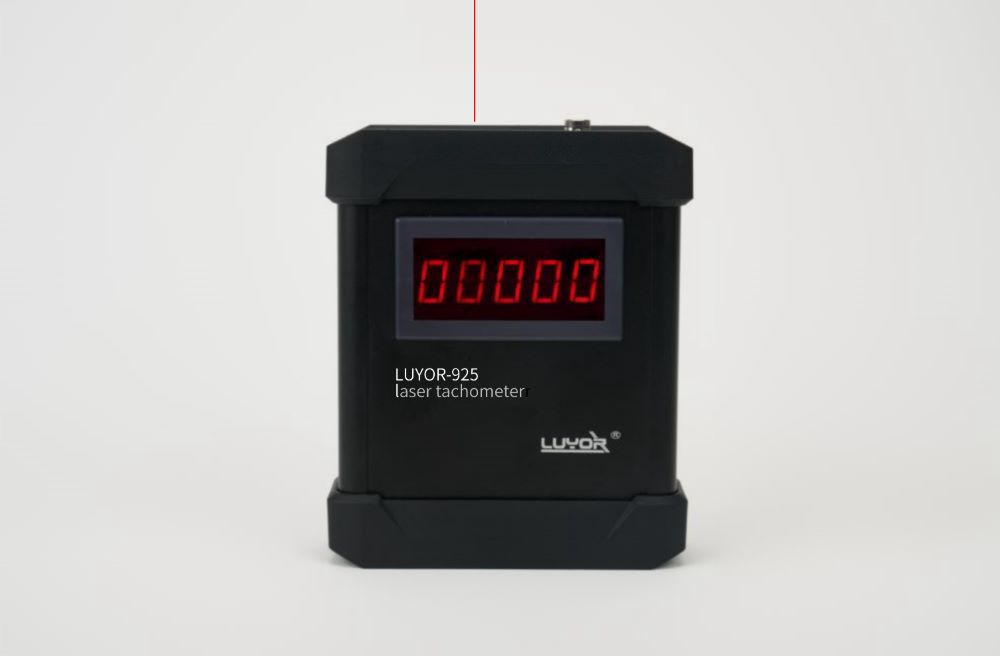

非接触远距离激光转速表LUYOR-925

LUYOR-925是一款能够定位与测量的多功能性相结合激光转速表,能够远距离、高精度、非接触测量旋转设备的转速,能够输出TTL信号传送给各种数采设备。LUYOR-925是一款利用激光测量旋转电机转速的准确数字便携式转速表。

在线咨询 价格咨询
13818683556
非接触远距离激光转速表LUYOR-925产品详情

便携式激光转速表LUYOR-925/ Laser tachometers

Laser tachometers LUYOR-925一款能够远距离、高精度、在线连续数天测量的激光转速表

LUYOR-925是一款能够定位与测量的多功能性相结合激光转速表,能够远距离、高精度、非接触测量旋转设备的转速,能够输出TTL信号传送给各种数采设备。LUYOR-925是一款利用激光测量旋转电机转速的准确数字便携式转速表。


性能:

宽速度测量范围:激光测量范围为0-99999 r/min

激光可在于6米以内的安全、快速、非接触式转速测量。

数码管显示,即使昏暗环境也能轻松读取数据。

与目标的角度范围为±60°,适用各种测量环境。

充电电池供电,充满电能够连续工作一周。

标准BNC输出接口,0-5V TTL信号输出,能够传送给各种数采设备。

背部带有1/4-20螺口,适配三脚架进行在线测量。

LUYOR-925 Digital laser tachometer

Pinpoint accuracy combined with measurement versatility

The LUYOR-925 is a fast and accurate tachometer utilizing laser measure rotational.

Wide speed measurement range: up to 99 999 r/min for laser measurement

Measurement modes include; rotational speed

Laser can be used for safe and quick, non-contact rotational speed measurements at distances up to 6m.

Digital tube display enables easy reading in almost all light conditions

Angular range of ±60° to target helps facilitate easy measuring

Compact design; one–hand operated instrument

Supplied in carrying case for protection and portability

TECHNICAL DATA

Designation
LUYOR-925
显示Display
5 digit LCD backlit display
显示精度Displayed resolution
1 r/min
Measurement

- Optical modes
r/min
- 采样时间Sampling time
0,5 seconds (over 120 r/min)
- 测量范围Rotational speed   range 3 to 99 999 r/min
- 测量精度Accuracy ±0,05% of reading ±1 digit
- 测量距离Measuring distance 50 to 6000 mm
工作角度- Angle of operation ±60˚
激光传感器- Laser sensor 1x built-in class 2 laser
Battery
工作时间Operation time 100 hours continuous use
Additional power source 5 V DC charging port (charger  included)
产品尺寸Product dimensions XXX x XX x XX mm
质量Product weight XXX g
工作温度Operating temperature 0 to 50 °C (32 to 122 °F)
存储温度Storage temperature –10 to +50 °C (14 to 122 °F)
相对湿度Relative humidity 10 to 90% RH non-condensing
防护等级IP rating IP 40
包装尺寸Case dimensions   260 x 85 x 180 mm (10.3 x 3.4 x 7.0 in.)
标准配置Case contents 1x  Tachometer LUYOR-925
 1X 充电器
 1x set of reflective tape
  1x printed instructions for use
