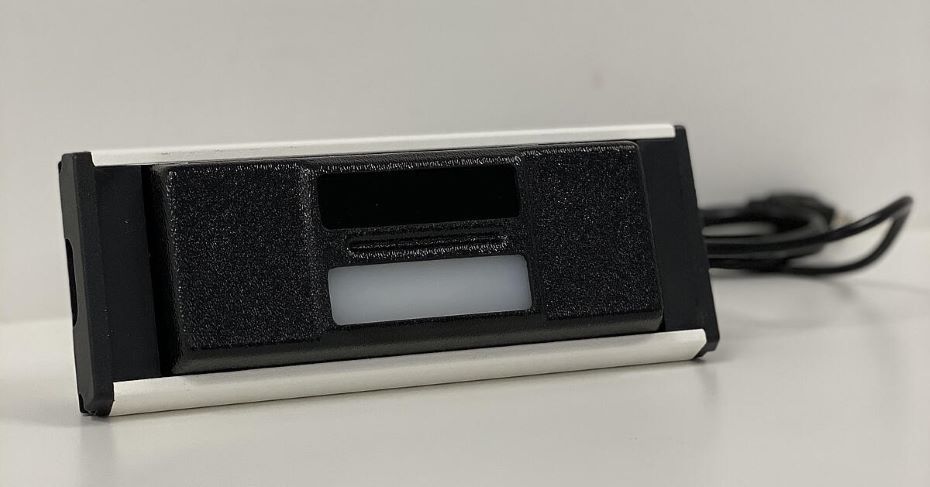

美国UVP UVLM-28双波长紫外线灯

美国UVP UVLM-28双波长紫外线灯为8瓦,长波365nm和中波302nm的双波长组合。金属外壳,具有坚固耐用,耐挤压等特点,EL手持紫外灯有单个波长和多种波长组合可选择。


在线咨询 价格咨询
13818683556
美国UVP UVLM-28双波长紫外线灯产品详情

美国UVP UVLM-28双波长紫外线灯

美国UVP UVLM-28双波长紫外线灯为8瓦,长波365nm和中波302nm的双波长组合。

金属外壳,具有坚固耐用,耐挤压等特点,EL手持紫外灯有单个波长和多种波长组合可选择。
美国UVP UVLM-28双波长紫外线灯

UVP UVLM-28双波长紫外线灯主要特点

从各种波长的选择:

1. 具有4W,6W或8W的选择。

2. 可选择的型号包括254nm的短波,365nm的长波或短波和长波的双波长紫外组合。

3. 可提供一个紫外光和一个白光的组合配置,被照射的材料在光线昏暗的区域时,可使用白光照明观察。

4. 双灯管模式可以选择一样的波长或两种不同的波长。

5. 只有8W的紫外灯可选择三种波长,UVLMS-38三波长于一体,可轻松切换三种波长(长波,中波和短波)为满足你的各种测试需要。

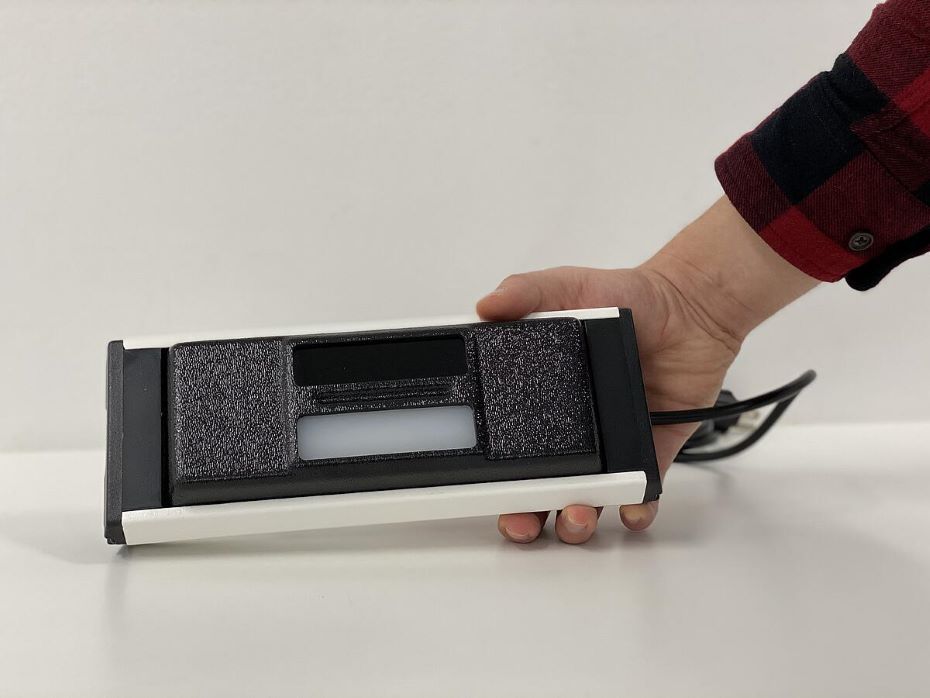

6. 坚固耐用的设计促使了高使用率。EL手持灯是重量轻,易于手持或结合支架免提操作。内置反射板,增强紫外强度。

美国UVP UVLM-28双波长紫外线灯产品规格

1. 功率:8W

2. 波长:2UV;长波365nm和中波302nm

3. 外壳:金属外壳,具有防刮耐磨粉末涂层

4. 线长:2.5米

5. 尺寸:376×96×64mm

6. 灯架:273x330x76mm

Part Numbers型号

型号

货号

功率/波长

可替换灯管

UVL-28

95-0248-02

8W,365nm,长波紫外线灯

34-0006-01

UVLM-28

95-0251-02

8W,2UV,302nm/365nm,双波长紫外灯

34-0006-01 365nm
       34-0042-01 302nm

UVLMS-38

95-0252-02

8W,3UV,254nm/302nm/365nm,三波长紫外灯

34-0006-01 365nm
       34-0007-01 254nm

34-0042-01 302nm

UVLS-28

95-0201-02

8W, 365nm/254nm,双波长紫外灯

34-0006-01 365nm

34-0007-01 254nm

UVM-18

95-0199-02

8W,302nm/白光,中波紫外线灯

34-0042-01

UVM-28

95-0250-02

8W,302nm,中波紫外线灯

34-0042-01

UVS-18

95-0200-02

8W,254nm/白光,短波紫外线灯

34-0007-01

UVS-28

95-0249-02

8W,254nm,短波紫外线灯

34-0007-01

UVL-18

95-0198-02

8W,365nm/白光,长波紫外线灯

34-0006-01

J-138

18-0063-01

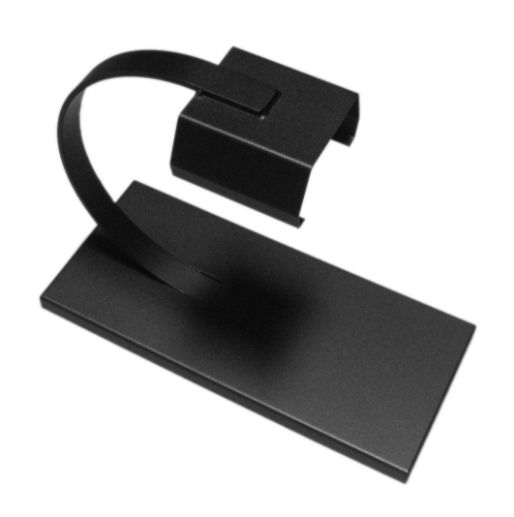

Lamp Stand,灯架

UVP EL Series UV Lamps

Select from lamps with four, six or eight watts

Models include 254 nm UV, 365 nm UV, combination 254/365 nm UV or UV with white light versions

Single UV models have two tubes of the same wavelength

2UV models use two different wavelengths

3UV models are available only in eight watt lamps and use 254/302/365 nm UV


Product Details

Select from a variety of wavelengths

Manufactured with a durable, extruded metal housing and scratch resistant powder paint. Select from a large range of lamps with single or multiple wavelengths and watts.

Rugged design is excellent for high usage. The lamps are lightweight for easy holding or place the lamp in the stand or cabinet for hands free operation. The built-in reflector enhances UV illumination.


Applications include:

  • Photochemistry/Phosphorescence

  • Inspection

  • Laboratory

  • General Chemical Laboratory

*Product performance and effectiveness will depend on the user.*

Order Information

EL Series Four Watt Lamp Part Numbers

115 V230 VModelWatt/WavelengthReplacement Filter
95-0264-0195-0264-02UVL-144 Watt, 365 nm / White38-0183-02
95-0267-0195-0267-02UVL-244 Watt, 365 nm38-0183-05
95-0271-0195-0271-02UVLS-244 Watt, 2UV 254/365 nm38-0183-03
95-0265-0195-0265-02UVM-144 Watt, 302 nm / White38-0183-01
95-0268-0195-0268-02UVM-244 Watt, 302 nm38-0183-04
95-0270-0195-0270-02UVLM-244 Watt, 302/365 nm38-0183-03
95-0266-0195-0266-02UVS-144 Watt, 254 nm / White38-0183-01
95-0269-0195-0269-02UVS-244 Watt, 254 nm38-0183-04


EL Series Six Watt Lamp Part Numbers

95-0275-0195-0275-02UVL-266 Watt, 365 nm38-0182-05
95-0278-0195-0278-02UVLM-266 Watt, 2UV 302/365 nm38-0182-03
95-0279-0195-0279-02UVLS-266 Watt, 2UV 254/365 nm38-0182-04
95-0273-0195-0273-02UVM-166 Watt, 302 nm / White38-0182-04
95-0274-0195-0274-02UVS-166 Watt, 254 nm / White38-0182-01
95-0277-0195-0277-02UVS-266 Watt, 254 nm38-0182-04
95-0272-0195-0272-02UVL-166 Watt, 365 nm / White38-0182-02

EL Series Eight Watt Lamp Part Numbers

95-0248-0195-0248-02UVL-288 Watt, 365 nm38-0158-01
95-0251-0195-0251-02UVLM-288 Watt, 2UV 302/365 nm38-0158-03
95-0252-0195-0252-02UVLMS-388 Watt, 3UV 254/302/365 nm38-0158-06
95-0201-0195-0201-02UVLS-288 Watt, 2UV 254/365 nm38-0158-03
95-0199-0195-0199-02UVM-188 Watt, 302 nm / White38-0158-05
95-0250-0195-0250-02UVM-288 Watt, 302 nm38-0158-02
95-0200-0195-0200-02UVS-188 Watt, 254 nm / White38-0158-05
95-0249-0195-0249-02UVS-288 Watt, 254 nm38-0158-02
95-0198-0195-0198-02UVL-188 Watt, 365 nm / White38-0158-04

Replacement Parts / Accessories


18-0063-01J-138Lamp Stand
34-0056-01Replacement Tube8 Watt, White
34-0006-01Replacement Tube8 Watt, 365 nm
34-0042-01Replacement Tube8 Watt, 302 nm
34-0007-01Replacement Tube8 Watt, 254 nm
34-0063-01Replacement Tube6 Watt, White
34-0034-01Replacement Tube6 Watt, 365 nm
34-0044-01Replacement Tube6 Watt, 302 nm
34-0013-01Replacement Tube6 Watt, 254 nm
34-0066-01Replacement Tube4 Watt, White
34-0005-01Replacement Tube4 Watt, 365 nm
34-0071-01Replacement Tube4 Watt, 302 nm
34-0003-01Replacement Tube4 Watt, 254 nm
