monarch instrument 转速表

作者:monarch instrument 时间:2024-06-11 15:22:16浏览48 次

信息摘要:

monarch instrument 转速表是美国原装进口的数字转速表,有便携式转速表和面板式转速表,便携式转速表有PT99光电转速表和PLT200便携式激光转速表。

monarch instrument 转速表

monarch instrument 转速表是美国原装进口的数字转速表,有便携式转速表和面板式转速表,便携式转速表有PT99光电转速表和PLT200便携式激光转速表

The PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* [8 meters] from a reflective target using a Class 2 laser light source. The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time while providing a non-slip rubber surface for single-hand operation. NIST Traceable Certificate is included.

便携式激光转速表PLT200

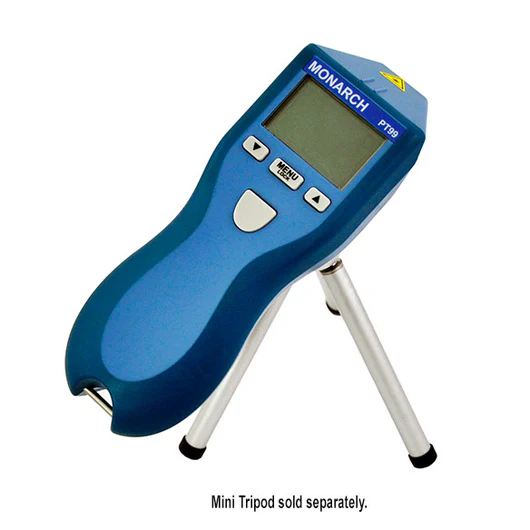

Pocket Tach 99 is a digital, battery-powered portable non-contact optical tachometer (red LED), which operates up to 36 inches from a reflective tape target using an LED light source. The ergonomic design allows safe, direct line-of-sight viewing of both the rotating target and the display at the same time while providing a non-slip rubber surface for single-hand operation. Available with NIST Traceable Certificate

便携式光电转速表PT99

monarch instrument面板式转速表ACT-1B和ACT-3X

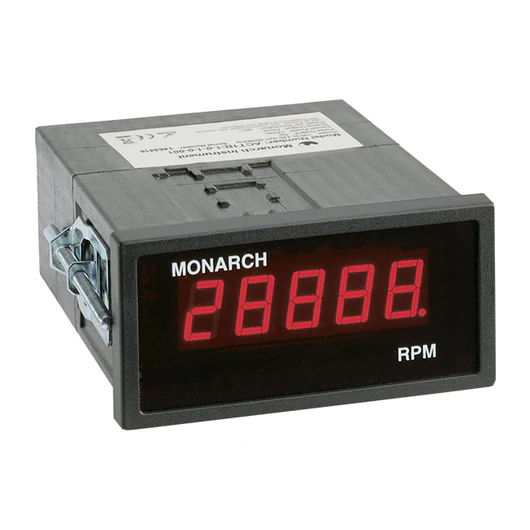

 The ACT-1B is an economical and easy-to-use digital tachometer that displays rotational speed directly in RPM or RPS on a 5-digit red 0.56" high LED using a speed sensor providing a single (or multiple) pulse(s) per revolution. The number of pulses per rev is factory set at time of ordering and can be user programmed from 1 to 999 using the optional USB programming cable and free downloadable PM Remote Software. Power may be either universal 100 to 240 V ac (50/60 Hz) or optional 12 V dc or 24 V dc isolated. The ACT-1B accepts input signals from optical, proximity, magnetic, infrared or laser sensors, or direct TTL or external ac inputs. The ACT-1B is suitable for panel mounting or bench top use with convenient screw terminal connections on the rear panel of the instrument.

面板式转速表ACT-1B

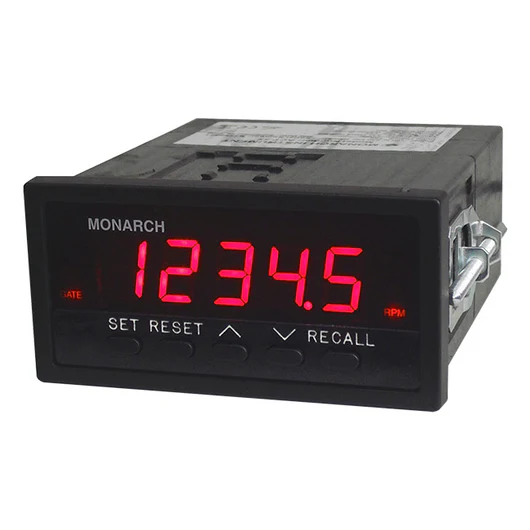

The ACT-3X digital panel meter is an extremely versatile instrument.  The user has complete control of the unit configuration.  Power may be either 115 - 230 Vac (50/60 Hz), or optionally, 12 Vdc or 24 Vdc.  Input signals are accepted (on Channel 1) from optical, proximity, magnetic, infrared or laser sensors, or direct TTL or external AC sources.  A second AUXiliary input (Channel 2) may be used for instrument control and remote resetting. There are several remote communication options – RS232, USB or Ethernet and the optional remote software can be used to program the unit or display data locally. The unit is suitable for panel mounting or bench top use, with convenient screw terminal connections on the rear panel of the instrument.

面板式转速表ACT-3X

上海峰志仪器有限公司现货供应美国进口,monarch instrument公司生产的各种款式转速表。
