美国spectroline ​XL-1000紫外交联仪

紫外交联仪XL-1000、XL-1500( spectroline UV crosslinker)是美国Spectronics公司生产的紫外辐照设备,设计实用,用途广泛。采用智能微处理控制系统和真实紫外监测回路。可以更快、更的安全地得到可靠无误的结果,减少无须的调整时间,不必要的重复过程和不期望的样品污染。美国Spectronics目的是使这些创新性仪器成为您需要的设备。

在线咨询 价格咨询
13818683556
美国spectroline ​XL-1000紫外交联仪产品详情

美国spectroline XL-1000紫外交联仪spectroline UV crosslinker XL-1000

美国Spectronics公司的XL-1000紫外交联仪是安装5根短波254nm紫外线灯管的短波紫外交联仪,设计实用,用途广泛。采用智能微处理控制系统和实时紫外监测系统。可以更快、更的安全地得到可靠无误的结果,减少无须的调整时间,不必要的重复过程和不期望的样品污染。美国spectro-UV公司的XL-1000紫外交联仪是使这些创新性仪器成为客户需要的设备。

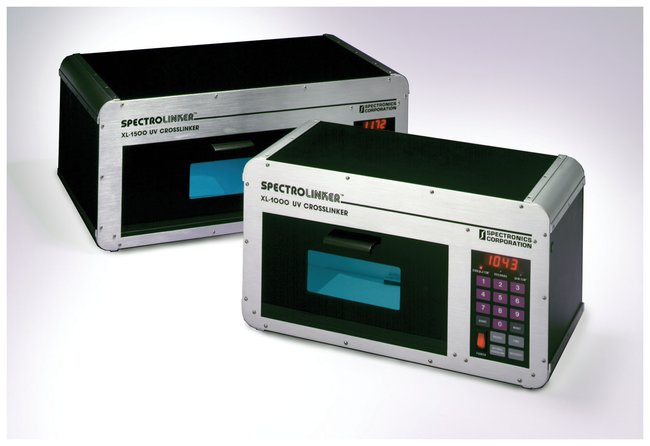

spectroline XL-1000紫外交联仪

美国spectroline XL-1000紫外交联仪的特点:

•30秒内快速固著核酸样—速度是真空炉烘焙的240倍!
•保护您的珍贵测试结果免冲失—独特的真正紫外监示电路可以确保紫外剂量和设定的一样。
•确保zui优膜固著--在整个灯管寿命内!
•"Smart" 微处理控制器提供轻松操作—  自动重复, "帮助"  提示及四种操作模式(包括zui优交联),保证结果无误。
•功能多样-适合于多种应用。
•比传统方法大大提高增强杂交信号
•每次得出印刷质量一样的结果
•自动重复“记忆”上次设置--快速、简单,只需按一键即可
•无与伦比的精度先进的传感器提供真实紫外监控。

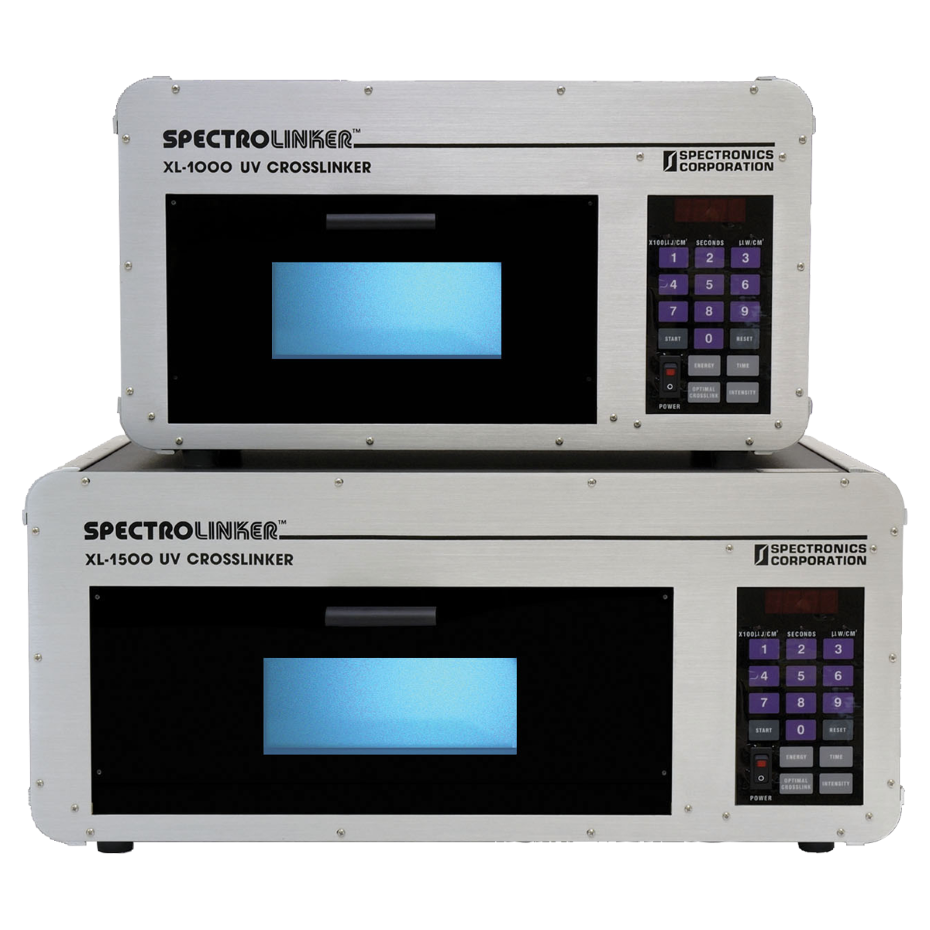

spectroline XL-1500紫外交联仪

Spectrolinker XL-1000及XL-1500系列UV交联仪的应用

•Elimination of PCRcontamination
•消除PCR污染
•Crosslinkingof DNA and RNA by covalently binding nucleic acids to nylonor nitrocellulose membranes after Northern, Southern, slot or dotblotting and colony or plaque lifts
•在Northern,Southern,Slot或Dot印迹和克隆或噬菌斑搭车后通过将核酸共价结合到尼龙膜和硝基纤维膜上而使DNA和RNA发生交联。
•Nicking ethidium-bromide-stainedDNA in agarose gels
•切下琼脂糖凝胶上EB染色的DNA。
•Gene mapping for creatingcleavage-inhibiting thymine dimers
•产生切割抑制的胸腺嘧啶二聚体而进行基因作图。
•RecA mutation screeningin E. coli
•大肠杆菌中RecA突变筛选。
•UV sterilization
•紫外灭菌
•UV-intensity monitoring
•紫外强度监测
•Miscellaneous UV-dosageapplications including UV-induced polymerization or drying
•多种紫外剂量应用包括紫外诱导聚合反应或干燥。

美国Spectronics公司的交联仪设计实用,用途广泛。采用“聪明的”微处理控制系统和独特的真实紫外监测回路。可以更快、更的安全地得到可靠无误的结果,减少无须的调整时间,不必要的重复过程和不期望的样品污染。我们的zui终目的是使这些创新性仪器成为您zui需要的设备。

紫外交联仪强大的功能包括:

四种操作模式
·自动优化交联(预设剂量120mJ/cm2
·紫外能量 (0-999,990 µJ/cm2)
·时间 (0 秒-2¾ 小时)
·紫外强度数字显示

内置 "帮助" 信息及LED显示,提示操作:
·您所选的设定
·剩余时间/能量
·当紫外灯管需要更换时
·当门打开时
·时间结束

美国spectroline XL-1000紫外交联仪的技术参数:

 XL-1000XL-1500
紫外线灯管(5) 8-Watt 254nmUV(6) 15-Watt254nm UV
可选紫外灯管(5) 8-Watt 312nmUV
(5) 8-Watt 365nm UV
(6) 15-Watt312nm UV
(6) 15-Watt 365nm UV
外形尺寸19.5W x 10.5H x 9 in D
(49.5W x 26.7H x 22.9 cm D)
24W x 10.5Hx 14 in D
(61.0W x 26.7H x 35.6 cm D)
有效内室尺寸13.5W x 7H x7.5 in D
(34.3W x 17.8H x 19.1 cm D)
18.25W x 6.25Hx 12.5 in D
(46.4W x 15.9H x 31.8 cmD)
净重17.5 lbs (7.9kg)26 lbs (11.8kg)
电源120V,60Hz, 2A
230V, 50Hz, 2A
100V, 50/60Hz, 2A
典型的紫外强度XL-1000:
 3,500-4,500 μW/cm2
XL-1500:
5,500-6,500 μW/cm2
XL-1000B:
2,600-3,200 μW/cm2
XL-1500B:
 3,800-4,400 μW/cm2
XL-1000A:
2,500-3,100 μW/cm2
XL-1500A:
4,400-5,000 μW/cm2
紫外显示分辨率: ±5µW/cm² (整个范围内)

产品型号后加尾缀/FA或/FC表明交流电工作电压为220V中国电压

如果您不会操作spectroline XL-1000、XL-1500紫外交联仪,或者紫外交联仪出现故障需要解决,需要购买紫外交联仪的紫外线灯管,需要美国spectroline XL-1000紫外交联仪的操作说明书,请添加微信13120936518咨询。

美国spectroline XL-1000紫外交联仪的英文介绍:

SPEECROLINE UV CROSSLINKERS XL-1500 Spectrolinker

DESIGNED TO MONITOR UV RADIATION AND SELF-ADJUST TO VARIATIONS IN UV INTENSITY, ALL SPECTRO-UV UV CROSSLINKERS FEATURE A “SMART” MICROPROCESSOR CONTROLLER AND UNIQUE TRUE UV MONITORING CIRCUITRY TO ENABLE USERS TO GET ERROR FREE RESULTS WITH SPEED, ACCURACY AND SAFETY.

The Spectrolinker™ series was developed to be one of the most advanced, versatile and accurate UV crosslinkers and is a now worldwide best-seller.

Currently not available in CE rated housings; not for sale in the European Union.


Description

Covalently binds nucleic acid sequences and hybridization membranes in 30 seconds or less

Safeguards your valuable test results from washouts

Ensures optimum nucleic acid membrane binding, even when UV output varies

Provides ultimate ease of use and accuracy with “Smart” microprocessor controller

Protects users from UV exposure with fully enclosed chamber

SPECTROLINKER™ SERIES

Rugged, anodized aluminum housing

Long lasting anodized aluminum chamber prevents rusting

Available in SW, MW and LW wavelengths

Available in Two Sizes: Standard XL-1000 Series, and Large XL-1500 Series

The 254nm versions of the Spectrolinker™ UV crosslinkers provide super-fast DNA and RNA crosslinking to membranes for improved hybridization-signal sensitivity. At peak, these units can process samples in under 30 seconds — that’s 240 times faster than vacuum-oven baking! Our exclusive, wavelength-specific, multi-stack UV photo sensor, which is factory-calibrated to NIST standards, provides precise UV-only dosage measurements. Full range display resolution is accurate to 5μW/cm2 EMI/RFI protection. All models from both series offer exceptional accuracy and precision irradiation, even compensating for aging UV tubes when output diminishes over time.

PROGRAMMABLE “SMART” MICROPROCESSOR CONTROLLER

crosslinker_keypadLED-function indicators and color-coded keypad

Built-in “help” messages

Four operation modes

Auto Repeat function remembers last operation without reprogramming

FOUR OPERATION MODES —

Optimal Crosslink mode automatically provides a preset UV energy dosage of 120 mJ/cm2

Energy-set mode (0-999,990 μJ/cm2) allows for variable amounts of UV energy to be programmed

Time mode (0-9,900 seconds), allows for variable time settings to be established

Intensity mode shows steady-state UV intensity output

Note: All units have an irradiance display resolution of ±5μW/cm2 over the entire range.

BUILT-IN “HELP” MESSAGES —

Bulb: When the UV tubes need to be replaced

Door open: the unit also protects users from accidental UV radiation when the door is opened during a run

End: End of cycle confirmed by display and audible beep

Remaining Time/Energy provides operation status report

When the operation has been interrupted. The RESET button cancels the latest settings and START button automatically resumes the current operation.

STANDARD SIZE PRODUCT DETAILS

Spectrolinker™ XL-1000 Series

Overall housing dimensions (W x H x D): 19.5″ x 10.5″ x 9″, 49.5 x 26.7 x 22.9cm

Effective inner chamber dimensions (W x H x D): 13.5″ x 7.0″ x 7.5″, 34.3 x 17.8 x 19.1cm

Door dimensions (W x H): 12.0″ x 6.25″, 30.5 x 15.9cm

Viewing window dimensions (W x H): 6.0″ x 2.5″, 15.2 x 6.4cm for XL-series, 6.0″ x 3.0″, 15.2 x 7.6cm for XLE-series

Net weight: 17.5 lb, 7.9kg

Power: 120V-60Hz-2A, 230V-50Hz-2A, 100V-50/60Hz-2A

LARGE SIZE

Spectrolinker™ XL-1500 Series only

Overall housing dimensions (W x H x D): 24.0″ x 10.5″ x 14″, 61.0 x 26.7 x 35.6cm

Effective inner chamber dimensions (W x H x D): 18.25″ x 6.25″ x 12.5″, 46.4 x 15.9 x 31.8cm

Door dimensions (W x H): 16.0″ x 6.25″, 40.6 x 15.9cm

Viewing window dimensions (W x H): 6.0″ x 2.5″, 15.2 x 6.4cm

Net weight: 26 lb, 11.8kg

Power: 120V-60Hz-3A, 230V-50Hz-3A, 100V-50/60Hz-3A
