spectroline uvb紫外灯

作者:美国spectroline 时间:2021-06-06 20:17:32浏览42 次

信息摘要:

紫外线强度,可进行zui亮的荧光分析。每个 E/12 系列紫外灯都是同类产品中功率zui大的单元。耐腐蚀的镜面铝反射器增强了其高紫外线输出。我们独特的 LONGLIFE™ 滤光玻璃与所有短波和中波型号一起提供,从一开始就确保更高的紫外线强度。由于我们的 LONGLIFE 过滤器的老化速度比传统过滤器慢得多,因此可以更长时间地抵抗日晒,让您使用更多年!

spectroline uvb紫外灯

美国spectroline公司现在不再提供UVB紫外灯,原来UVB系列紫外灯均已经停产,现在只能提供UVA和UVC波段紫外灯,现将试验室行业用的E系列uva和uvc紫外灯介绍如下,供大家参考:

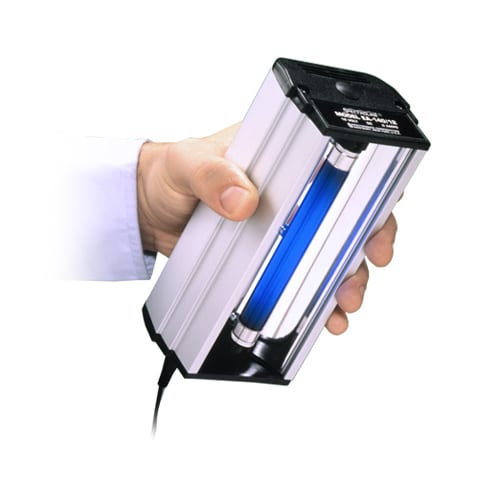

spectroline E/12系列紫外线专业检测 电池供电、可充电、手持式紫外线灯

便携、紧凑、轻便的型号提供波长、强度、尺寸和瓦数的理想组合。
专门设计用于提供同类产品中的zui高强度。
所有灯都标配附带的方便提手。
具有四路电源的可充电电池供电装置,每个装置都有不同的操作模式。
选择自动或手动充电器


描述
紫外线强度,可进行zui亮的荧光分析。每个 E/12 系列紫外灯都是同类产品中功率zui大的单元。耐腐蚀的镜面铝反射器增强了其高紫外线输出。我们独特的 LONGLIFE™ 滤光玻璃与所有短波和中波型号一起提供,从一开始就确保更高的紫外线强度。由于我们的 LONGLIFE 过滤器的老化速度比传统过滤器慢得多,因此可以更长时间地抵抗日晒,让您使用更多年!

我们广泛的型号使您能够选择zui适合您需求的紫外线波长、强度、尺寸和瓦数的组合。无论您选择哪种型号,请放心,它将具有相同的高质量元素和精密工程。

坚固、可靠且易于使用。E/12 系列紫外线灯的特点包括银色阳极氧化铝外壳,使其既美观又耐用。为了额外的手持方便,附有一个提手。“开/关”切换开关位于装置顶部,让您轻松控制辐照度。此外,当电池需要充电时,每个单元前端盖上的 LED 会亮起。

为了使用灯泡,必须订购以下一种或多种附件。要从 BP-12A 电池组或车辆的点烟器插座为灯供电,请使用带有公头点烟器插头的 AL-12 适配器。要直接从车辆电池或任何可提供至少 0.5 安培连续电流的 12 伏电池为灯供电,请使用一端带有两个鳄鱼夹的 AA-12 适配器。使用带有 10 英尺电源线的 AP-12/4 或 AP-12/6 交流适配器从 120 伏交流电源插座为灯供电。

产品编号 描述
EA-140:E 系列,365nm,1 x 4 瓦 BLB 管(120V/60Hz)
EA-160:E 系列,365nm,1 x 6 瓦 BLB 管(120V/60Hz)
ENF-240C:E 系列,(1) 365nm/(1) 254nm 4 瓦管和过滤器组件 (120V/60Hz)
ENF-260C:E 系列,(1) 365nm/(1) 254nm 6 瓦管和过滤器组件 (120V/60Hz)
ENF-280C:E 系列,(1) 365nm/(1) 254nm 8 瓦管和过滤器组件 (120V/60Hz)
EA-140/12:E/12 系列,365nm,1 x 4 瓦 BLB 管,BP-12A 电池组单独出售
EA-160/12:E 系列,365 纳米,1 x 6 瓦 BLB 管,BP-12A 电池组单独出售
ENF-240C/12:E/12 系列,(1) 365nm/(1) 254nm 4 瓦管和过滤器组件,BP-12A 电池组单独出售
ENF-260C/12:E/12 系列,(1) 365nm/(1) 254nm 6 瓦管和过滤器组件,BP-12A 电池组单独出售
ENF-280C/12:E/12 系列,(1) 365nm/(1) 254nm 8 瓦管和过滤器组件,BP-12A 电池组单独出售
BP-12A 电池组提供了一个完全独立的移动装置!
电池的平均额定寿命为 200-1,000 次充电/放电循环,具体取决于放电深度。
BP-12A 包括:
RB-12M:手动充电器插入交流电源插座并在 11 小时后充满电。提供 120V 和 230V 版本。
9B65:12V、7A-hr 充电电池,带母头点烟器插座方便的尼龙手提箱
E 系列灯适配器
AA-12:适配器(12 伏电池),带有用于 E 系列和 E/12 系列的鳄鱼夹
AL-12:适用于 E 系列和 E/12 系列的带公直流插头的适配器(12 伏电池)
AP-12/6:带 10 英尺交流电源线的适配器 – 适用于 E 系列和 E/12 系列灯的 6 瓦和 8 瓦(115 伏)

E/12 SERIES UV SPECIALTY INSPECTION
Battery-Operated, Rechargeable, Hand-Held UV Lamps

Portable, compact, lightweight models provide ideal combinations of wavelengths, intensities, sizes and wattages.
Specially designed to provide the highest intensity in its class.
All lamps come standard with attached convenient carrying handle.
Rechargeable, battery-operated units with four-way power, each with a distinct mode of operation.
Choice of automatic or manual rechargers
Buy Now
Description
Unsurpassed UV intensities for the brightest fluorescence analysis. Each E/12-Series UV lamp is the most powerful unit of its type available. Corrosion-resistant, specular-aluminum reflectors intensify their high UV output. Our unique LONGLIFE™ filter glass, supplied with all short-wave and medium-wave models, assures higher UV intensity right from the start. Since our LONGLIFE filter ages at a much slower rate than conventional filters, it resists solarization longer, giving you many more years of use!

Our wide range of models enables you to choose the combination of UV wavelength, intensity, size and wattage that’s best for your needs. No matter which model you select, rest assured it will have the same high-quality elements and precision engineering.

Built tough, dependable and easy to use. Features of the E/12-Series UV lamps include a silver, anodized-aluminum housing that makes it both attractive and durable. For extra hand-held convenience, a carrying handle is attached. ‘‘On/Off’’ toggle switch, well located on the top of the unit, puts irradiance control at your fingertips. Also, an LED on the front endcap of each unit lights when the battery needs recharging.

In order to use the lamp, one or more of the following accessories must be ordered. To power the lamp from the BP-12A battery pack or from a vehicle’s cigarette-lighter receptacle, use the AL-12 adapter with a male cigarette-lighter plug. To power the lamp directly from a vehicle battery or any 12-volt battery that can supply at least 0.5 amp of continuous current, use the AA-12 adapter with two alligator clips on one end. Use the AP-12/4 or AP-12/6 AC adapter with a 10-foot cord to power the lamp from a 120 volt AC outlet.


Product No. Description
EA-140:E-Series, 365nm, 1 x 4 watt BLB tube (120V/60Hz)
EA-160:E-Series, 365nm, 1 x 6 watt BLB tube (120V/60Hz)
ENF-240C:E-Series, (1) 365nm/(1) 254nm 4 watt tubes and filter assembly (120V/60Hz)
ENF-260C:E-Series, (1) 365nm/(1) 254nm 6 watt tubes and filter assembly (120V/60Hz)
ENF-280C:E-Series, (1) 365nm/(1) 254nm 8 watt tubes and filter assembly (120V/60Hz)
EA-140/12:E/12-Series, 365nm, 1 x 4 watt BLB tube, BP-12A battery pack sold separately
EA-160/12: E-Series, 365nm, 1 x 6 watt BLB tube, BP-12A battery pack sold separately
ENF-240C/12: E/12-Series, (1) 365nm/(1) 254nm 4 watt tubes and filter assembly, BP-12A battery pack sold separately
ENF-260C/12: E/12-Series, (1) 365nm/(1) 254nm 6 watt tubes and filter assembly, BP-12A battery pack sold separately
ENF-280C/12:E/12-Series, (1) 365nm/(1) 254nm 8 watt tubes and filter assembly, BP-12A battery pack sold separately
BP-12A Battery Pack provides a completely self-contained, mobile unit!
The battery has an average rated life of 200-1,000 charge/discharge cycles, depending on the depth of discharge.

BP-12A includes:
RB-12M: manual charger plugs into AC outlet and is fully charged after 11 hours. Available in both 120V and 230V versions.
9B65: 12V, 7A-hr rechargeable battery with a female cigarette-lighter receptacle
Convenient nylon carrying case  Adapter for E- Series Lamps
AA-12:Adapter (12 Volt Battery) with alligator clips for E-Series and E/12-Series
AL-12:Adapter (12 Volt Battery) with male DC plug for E-Series and E/12-Series
AP-12/6:Adapter with 10 foot AC Cord – for 6 and 8 watt for E-Series and E/12-Series lamps (115 Volt)

spectroline E系列紫外灯操作说明书下载:

spectroline E系列紫外灯操作说明书
